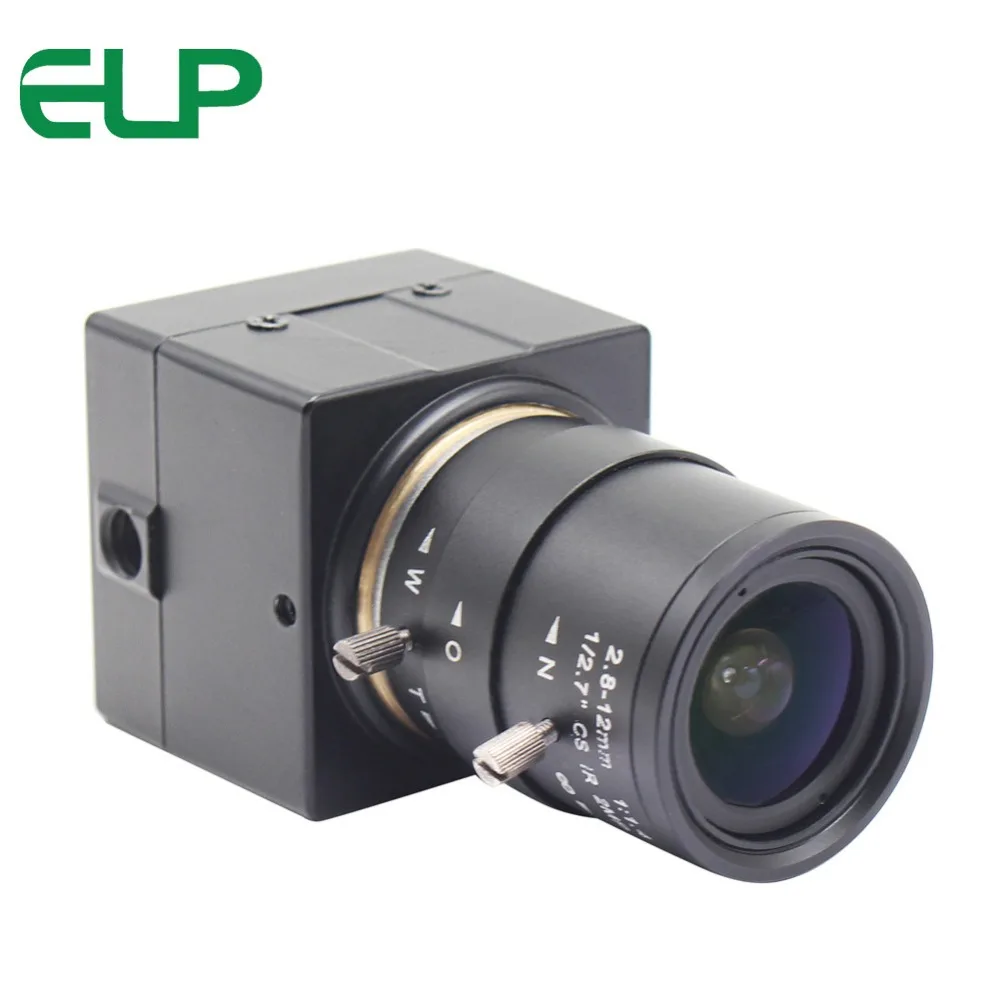

5 megapixel high resolution USB 2.0 webcam Aptina Color CMOS Full HD 5MP USB Camera Varifocal for 3D printer
1. Main Specifications
Model ELP-USB500W05G-SFV (2.8-12mm varifocal lens)
Sensor :Aptina MI5100
Lens Size 1/2.5 inch(4:3)
Pixel Size 2.2um
image area 5.7mm x 4.28mm
Max. Resolution 2592(H) X 1944(V)
Compression format MJPEG / YUV2(YUYV)
Resolution & frame
2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG
1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG
1920x1080 @ 30fps MJPEG / 1280x720 @ 30fps MJPEG
800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG
S/N Ratio 38dB
Dynamic Range 70dB
Sensitivity 1.4V/lux-sec@550nm
Mini illumination 0.1lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port type USB2.0 High Speed
Free Drive Protocol USB Video Class(UVC)
OTG protocol USB2.0 OTG
AEC Support
AEB Support
AGC Support
Button camera Support
Adjustable parameters: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens Parameter Size: 1/2.5, Iris: F2.4, Focus: 3mm, FOV:
LED board control interface Support 2P-1.25mm socket
LED board power connector Support 2P-2.0mm socket
Power supply USB BUS POWER 4P-2.0mm socket
Operating Voltage DC5V
Working current 150mA~200mA
Working temperature -10~70
Storage temperature -20~85
Board size 38X38mm(compatible 32X32mm)
Operating system request WinXP/Vista/Win7/Win8
Linux with UVC(above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC
2.Package includes:
1) one 5mp usb camera with mini box, with 2.8-12mm varifocal lens
2) one 3m usb cable
4. Sample picture: Indoor and outdoor
