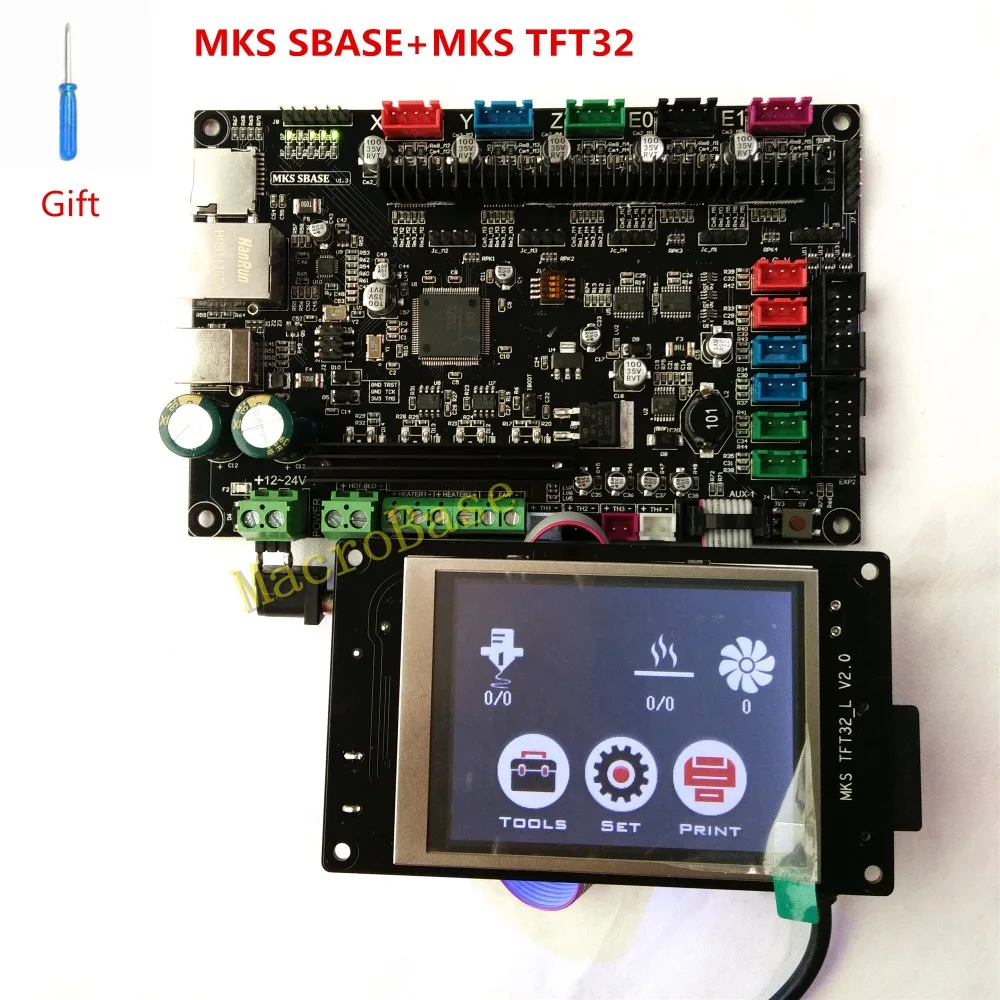

Best Laser Printer Machine Sale Choice Collections provide thermal printer,3d printer,printer accessories,original printer Fast Promotion MKS SBASE + MKS TFT32 V3.0 display 3D printer controller kits integrated Microcontroller ARM Cortex smoothieboard Smoothieware. Get Discount Now! Only US $69.66/piece at this time. Hurry buy Now before back to normal price! Normal price US $74.90 or you can Check price now. Dont waste your time. Buy Now only in MacroBase Store Trusted Seller Store!
- Support highly modular open source firmware Smoothieware. Easy to edit config.txt file. No complicate firmware editing necessary.
- Fully supports network functionality. Besides the regular USB connection an Ethernet network cable can be connected directly to a network for browser control. Board IP address can be configure in config.txt.
- Setcurrent directly on config ,protect driver or potentiometer from getting burned when adjust the current.
- This circuit board with high-quality 4-layer and better heatsink.
- Using a dedicated power supply chip, stably ensure power output. (Please note that MKS SBASE cant work with OLED12864 and LCD2004 displMore features as following
Wiring
SIZE
PINOUT
How to use
1.Copy “firmware.bin” and “config” from config file to SD card (SD smaller than 64Gb).
Need to change config name .
For example:
Change
into
2. Adjust config.txt according to the configuration .
3.Refer to MKS-SBASE PIN , make correction connection. Such as stepper motor ,endstops.
4.Plug the SD card to the board, after power on, it will automatic update .
5.If connect computer with USB, need to install the driver (Refer to below specification ).
Install the Driver
First, you should upload the zip file.
Then, plug the USB to computer . Next, enter device manger .
Then will turn up COM after install successfully.
Download Firmware and Update
Copy configuration (including firmware.bin and config.txt) to SD card, insert to the board and power on,
it will automatic update .
After successful updated, the file name will turn into firmware.cur.
Name:MKS TFT32 V2.0 Touch Screen
MKS TFT32 is a colorful touch screen which is used independently on 3d printer.
This display is no need to set mainboard firmware and work together directly.
And it is easy to replace into your logo and edit your local language.
Also, it is available to self-define some commands .
Attention: MKS TFT32 can’t work with Ramps1.4.
More features as follows:
Wiring
SIZE
How to assemble with mainboard.
Set the baud rate, ensure both TFT and controller board are the same.
1.MKS Series mainboards
Such as, MKS SBASE,MKS MINI,MKS GEN,MKS BASE, MKS GEN L,etc.
Flash firmware to mainboard .( TFT display has updated latest config inside already).
Connect TFT display to AUX-1 of the board.
No need to configure on board firmware,they will work together directly after wire.
The boards need a external 12V power supply.
2.Firmware Update
Please copy following documents to the root of SD card.
(Please don’t edit the documents name.)
mks_picmks_configmkstft28
Then, plug the SD card to the TFT and power on. It will update automatically.
3.Config
4.Bed Leveling
Auto Leveling
After the machine assembles with a bed leveling controller, then run leveling on TFT interface.
#The command of auto leveling (G29 is available for Marlin.
While G32 is for Repetier and Smoothieware)
>cfg_auto_leveling_cmd:G28;G29;
Manual Leveling
Manual leveling is good for MB,i3 etc machines. It is available to set 3,4,5 point .
#The point number of manual leveling:(3,4,5 point available)
>cfg_point_number:4
5.Filament Replace
It is easy to replace the filament when it runs out.
You are able to set temperature and the speed of filament in-out on config.
As following:
#the speed of filament replacing(mm/min)
>cfg_filament_change_speed:1200
#the length of filament replacing(mm)
>cfg_filament_change_step:5
#the min temperature of filament replacing
>cfg_filament_limit_temperature:175
Then, here is the steps to replace filament.
1).On printingpause-----more-----change----in/out-----stop 2).Before start printingset-----change-----preheat-----in/out-----stop 6.Print from Breakpoint
TFT has a one of the excellent features is able to print from Breakpoint.
Below is the way to do it.
Firstly, set target temperature of extruder and heated bed, and then preheat.
Secondly, when preheat ready, go home .(Notice: if power off happens during operating printing from breakpoint, please must home .)
Thirdly, move extruder to the breakpoint which is available to set allowable error.
#Breakpoints continued playing Z-axis error setting
>cfg_breakpoint_z_error:0.2
Fourth, click set, and then click Continue(Means Print from Breakpoint).
After that, choose the file you want.
(If you pause the printing, and turn the printer off,
then it will resume to print from the pause point after power on.)
7.Filament Outage Detecting
Connect detecting switch to PB1 of TFT.
Set configuration to trigger low level or high level available.
#the level signal of outage detection module PB1(low level:0; high level:1)
>cfg_PB0_PB1_Level:1
8. Auto off after Print Finishes
Enable this function on config,and take concerted with PWC switch.
#whether set machine auto-off after print finishes(auto-off:1; NO:0)
>cfg_print_finish_close_Machine:0
9. MKS WIFI
MKS TFT supports WIFI remote control. Please set configurations.
As follow:
#wifi mode(AP:1; STA:2)
>cfg_wifi_mode:1
#wifi name and password
>cfg_wifi_ap_name:MKS_wifi
>cfg_wifi_key_code:makerbase
#Dynamic access IP
>cfg_ip_dhcp_flag:1
#IP/mask/gateway
>cfg_ip_address:192.168.3.100
>cfg_ip_mask:255.255.255.0
>cfg_ip_gate:192.168.3.1
10.WiFi Wiring on TFT
11.User-Defined Function
Declared Value
In order to ensure you receive you order tax free upon import,we will declare it
with a lower value. This lower price does not reflect the total price you paid or the market value of the product and may not apply to countries with different tariff rules.Any import charges or fees are the buyers responsibility.
Returns
1.If you are not satisfied with your purchasing for any reason,you can return the item to us,please send message to us before return.
2.It must be returned within 14 days,return shipping fee will be paid by buyer.
3.Once we get the item,we will exchange or rufund your money,but not including shipping&handing and insurance fee.
Feedback
1.Please do leave us positive feedback if you are satisfy with our items and service!
2.Please contact us before leaving any negative or neutral feedback.Our aim is to provide Top Level Customer Service, we will work with you to solve any problems.
Thank you for viewing and your support!
