Nema17 3D Printer 3Axis Kit 28oz.in Stepper Motor+Driver+Power Supply+Mach3 Breakout Board for 3D Printer DIY Kit

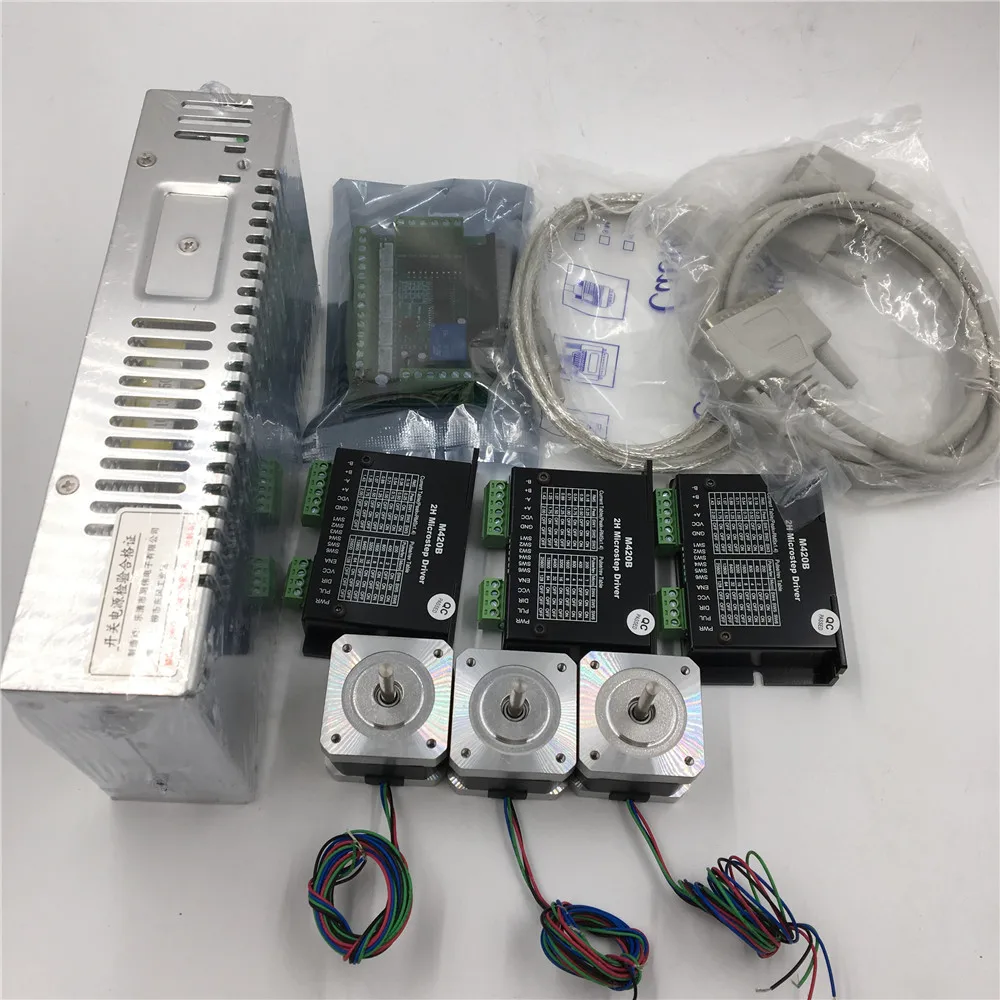

1, Package Included :

3 x Nema17 stepper motor

3 x Stepper Driver 1 x Power Supply1 x 5Axis Breakout Board1 x USB Cable 1 x DB25 Parallel Cable

2. Motor Technical Parameters :

Model	42HS2806A4
Step Angle	1.8 Degree
Rated Current	0.6A
Shaft Diameter	5mm
Phase Resistance	2.4 ohms
Phase Inductance	310mH
Holding Torque	0.12NM
Detent Torque	0.016NM
Rotor Inertia	220 g.cm2
Motor Length	28mm
Step Angle Accuracy	±5%(full step, no load)
Resistance Accuracy	±10%
Inductance Accuracy	±20%
Temperature Rise	80 Degrees Celsius Max
Ambient Temperature	-20°C-+50°C
Insulation Resistance	100MΩ Min.500V DC
Dielectric Strength	500V AC for one minute
Warranty	One year

Dimension:

3. Drive Technical Parameters

Model	M420B
Type	2Phase 128 Micro-step Driver
Advantage	High performance, low price Voltage supply: 18~40VDC Drive current: 0.25~2A Automatic half flow function The highest dynamic 128microstep Photoelectric isolation signal input Motor noise optimization function Bipolar constant current chopping mode Chopper frequency up to 100 KHZ Exquisite shape, ease of installation

Item	Min	Typical	Max	Unit
Power supply	18	24	40	V
Average output current	0.25	1	2	A
Logic input current	6	15	30	mA
Impulse response frequency	-	-	100	KHZ
Pulse low level	5	-	1	μS

4. Power supply

Model	S-250-24
Input	100-120VAC 5A 200-240VAC2.5A 47-63Hz
Output	24VDC 10A

5. 5 axis CNC Breakout Board

Mach3 Software	Win XP
System	High performance, cost-effective
	Maximum support 5-axis stepper motor driver controllers
	Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software
	USB power supply and peripherals powered phase are separated to protect computer security
	All the signals are opto-isolated which can protect your computer security
	5-input interface to define the Limit, Emergence-Stop, Cutter alignment etc
	Wide input voltage range: 12-24V, and with anti-reverse function
	One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc
	Output 0-10V analog voltage for inverter to control the spindle speed

6. System
