Big Limited 39oz.in 3 Axis Stepper Motor Kit Nema17 + Power Supply +5Axis Breakout Board for 3D Printer 3 Axis Kit

Big Limited 39oz.in 3 Axis Stepper Motor Kit Nema17 + Power Supply +5Axis Breakout Board for 3D Printer 3 Axis Kit Rating: 5 out of 5

Best Laser Printer Machine Sale Choice Collections provide printer accessories,new printer,printer machine,3d printer Big Limited 39oz.in 3 Axis Stepper Motor Kit Nema17 + Power Supply +5Axis Breakout Board for 3D Printer 3 Axis Kit. Get Discount Now! Only US $96.90/piece at this time. Hurry buy Now before back to normal price! Normal price US $102.00 or you can Check price now. Dont waste your time. Buy Now only in C N C Solution Store Trusted Seller Store!

Quality items guarantee your life a lot more comfy when using it. If you are interested to acquire it, you can straight get in touch with the sales to obtain even more information about this quality item.

39oz.in 3 Axis Stepper Motor Kit Nema17 + Power Supply +5Axis Breakout Board for 3D Printer 3 Axis Kit

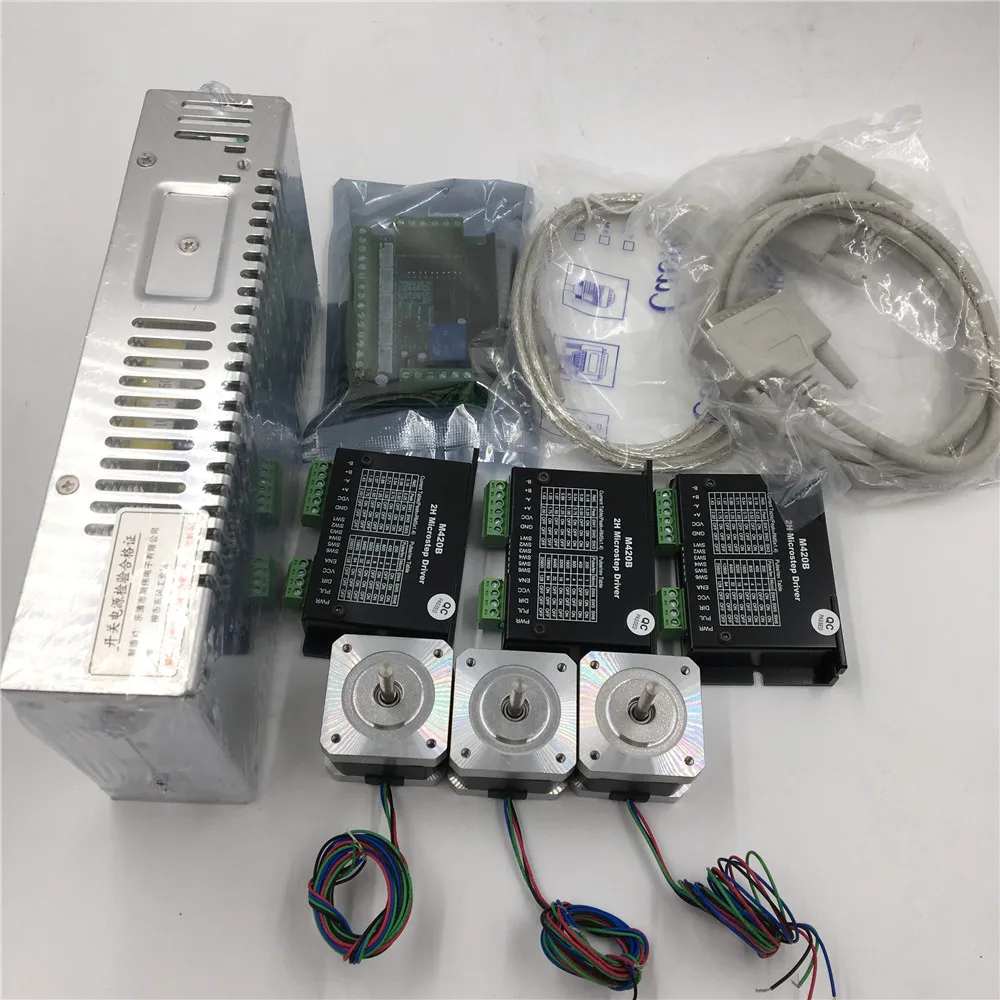

Package Included :

3 x Nema17 stepper motor 3 x Stepper Driver 1 x 5Axis Breakout Board1 x Power Supply1 x USB Cable 1 x DB25 Parallel Cable

2. Motor Technical Parameters

Model

3Axis 42HS3404A4

Step Angle

1.8 Degree

Shaft Diameter

5mm (Milling flat 0.5mm)

Shaft length

24mm

Rated Current

0.4A

Phase Resistance

30 ohms

Phase Inductance

35mH

Holding Torque

0.28NM

Detent Torque

0.016NM

Rotor Inertia

34 g.cm2

Motor Length

34mm

Step Angle Accuracy

±5%(full step, no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80 Degrees Celsius Max

Ambient Temperature

-20°C-+50°C

Insulation Resistance

100MΩ Min.500V DC

Dielectric Strength

500V AC for one minute

Warranty

One year

3. Drive Technical Parameters

Model

M420B

Type

2Phase 128 Micro-step Driver

Advantage

  • High performance, low price
  • Voltage supply: 18~40VDC
  • Drive current: 0.25~2A
  • Automatic half flow function
  • The highest dynamic 128microstep
  • Photoelectric isolation signal input
  • Motor noise optimization function
  • Bipolar constant current chopping mode
  • Chopper frequency up to 100 KHZ
  • Exquisite shape, ease of installation
  • Item
  • Min
  • Typical
  • Max
  • Unit
  • Power supply
  • 18
  • 24
  • 40
  • V
  • Average output current
  • 0.25
  • 1
  • 2
  • A
  • Logic input current
  • 6
  • 15
  • 30
  • mA
  • Impulse response frequency
  • -
  • -
  • 100
  • KHZ
  • Pulse low level
  • 5
  • -
  • 1
  • μS

4. Power supply

Model

S-250-24

Input

100-120VAC 5A

200-240VAC2.5A

47-63Hz

Output

24VDC 10A

5. 5 axis CNC Breakout Board

Mach3 Software

Win XP

System

High performance, cost-effective

Maximum support 5-axis stepper motor driver controllers

Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC software

USB power supply and peripherals powered phase are separated to protect computer security

All the signals are opto-isolated which can protect your computer security

5-input interface to define the Limit, Emergence-Stop, Cutter alignment etc

Wide input voltage range: 12-24V, and with anti-reverse function

One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc

Output 0-10V analog voltage for inverter to control the spindle speed

6. System
