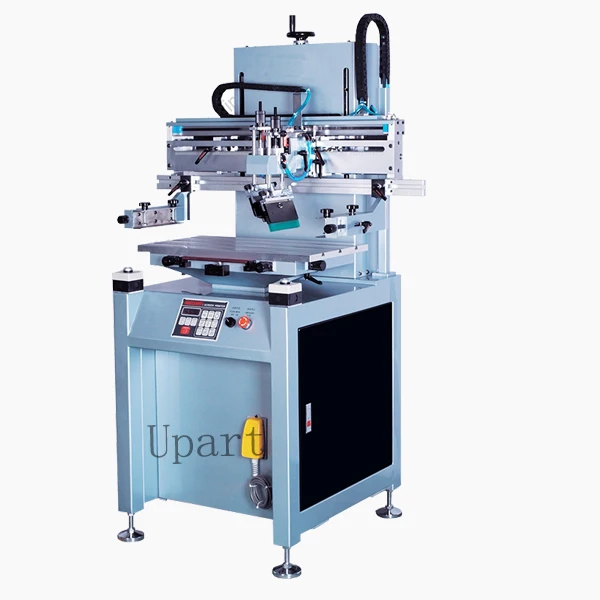

screen printer for keyboard, computer keyboard screen printer video, uv drying machine
screen printer for keyboard Application:
Metal, glass, ceramic, plastic, wood, leather and other materials. Widely used in: electronics, advertising, packaging, printing, sports equipment, toys, stationery, gifts and other industries. Products such as PCB, LCD, EL, IC, SMT and so on. Meanwhile, the model is also suitable for other precision printing, stickers, ceramic flower paper, membrane switch (button), posters, automotive glass, instrumentation, building plaques, nameplates, billboards and other signs.
screen printer for keyboard Performance Introduction:
1.Microcontroller IC Compiler with touch panel operation program;
2.Automatic four-digit counter, statistics the number of prints;
3.Full cast aluminum fuselage, the surface of metallic paint;
4.Double-column lifting structure, high precision stable;
5.About adjustable stroke, Taiwan photoelectric switch limit;
6. Scraper/ ink cover angle is Adjustable.
7.Scraper constant pressure device to ensure pressure stability of the printing process;
8.Right around the table, around, and fine-tune the angle of rotation lock;
9.The frame position can be front, left, horizontal, height adjustment;
10.Vacuum worktable, easy to fix soft and light products.
11. Up,down,left, right with Taiwan CEC Hydraulic shock absorber to eliminate printing shock;
12.Whole machine working fast, stable, low noise. Action mold have full automatic/semi automatic/ manual.
Machine parameter:
Machine parameter:
Item number: US-4060
Printing surface: flat surface
Printing color: can register colors
Start Model: Foot Pedal
Up/down drive way: pneumatic
Left/ right drive way: Electric
Left/right stroke: 600mm
Up/down stroke: 200mm
Workbench size:500x 700mm
Max printing area: 400x 600mm
Max products thickness: 180mm
Printing speed: 800 times/ hour
Voltage: 220V 50-60MHZ 200W
Air pressure:5-7BAR
Machine dimension:1150x 1000x 1700mm
Weight: 320kgs
Remark:
1 Package: Standard export plywood case
2 Warranty: 1 year
uv drying machine Scope of Application:
Printing paper surface processing, Plastic flooring, flooring materials, surface coating, surface modification
Surface coating of plastic molded products,Surface coating inorganic building materials,Manufacturing of motor parts,Surface coating wires, optical fibers,Printed Sticker, label printing (letterpress printing, offset printing),Business Forms Printing,Thin plastic printing plastic,Thick paper printing,Sheet-fed printing
uv drying machine parameter:
Lamp tube | 3KWx 2 pieces |
Lamp density | 200W/cm |
Lamp Use life | 600 hours |
Lamp Material | super pure silica glass |
Total Length | 2.0meter |
Width of feeding | 550MM |
Length of feeding/ Discharge length | 500MM |
Belt material | Teflon |
Wavelength | 365nm |
Power | 380V/ 3 phase |
Machine dimension | 2200x650x 1450mm |
Weight: | 200kg |
Main performance
1 2 sets of UV light source system configuration, according to the number of open lamp production needs.
2 Import teflon conveyor belt, seiko produced, smooth operation noise
3 In Taiwan, the belt speed motor and speed stepless speed conveyor speed visual production situation
4 Convergent design, high light-gathering reflective chimney, instant drying speed, when the express.
5 UV light height of chimney can be adjusted.
6 UV lamp working current can be shown by the master, UV analogue display system working condition
7 Equipped with exquisite cooling system, prevent the working chamber at high temperature, the effective protection of production work environment.
Configuration:
1.import UV light ,high gather reflective chimney
2.import teflon or stainless steel mesh belt
3.stepless motor import from Taiwan
4.Manda brand cooling fan with high quality
