run-table hydraumatic hot stamping machine hot stamping printing machine price

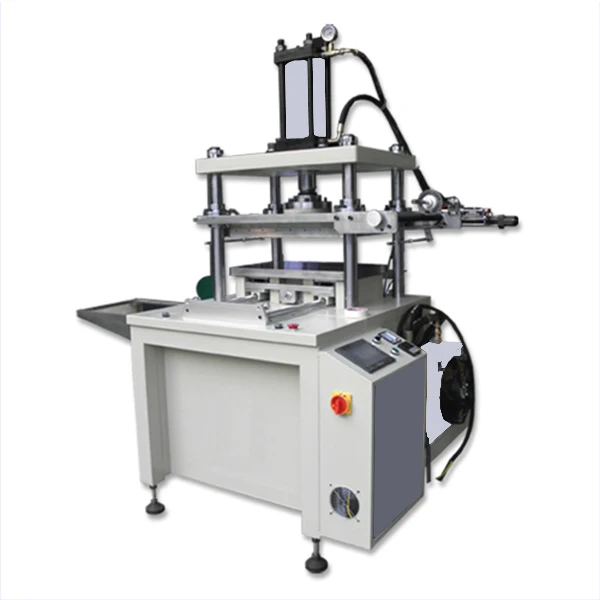

Sidle Hydraulic Flat Hot foil Stamping Machine apply:
Suitable to small piece/ board shape etc to hot foil. Like : Packaging cardboard, plastic, packaging boxes,
metal sheets, etc.
Hydraulic Flat Hot foil Stamping Machine Features:
1 High pressure fuel pump system to supply oil,when unloaded can running quickly , the
case load and immediately generate high pressure regulator function
2 Lifting plates adopt high-precision movement with precision guide columns, the maximum pressure achieve 140Kg/cm 2.
3 Workbench using high-precision heavy tanks with precision linear guide, the maximum withstand pressure reaches 140Kg//m2, the speed can is adjustable.
4 Hot plate using high quality steel processed, the highest temperature setting 220-240 degrees.
5 Hydraulic system adopts inverter control,reduce the motor run time is reduced function, energy saving.
6 Digital control machine interface, you can set a variety of functions and operating parameters, and conducive to job data of standard equipment, humane
Hydraulic Flat Hot foil Stamping Machine Parameter:
Number | Item Name | Specification |
1 | Stamping board Size | 400x600mm |
2 | Heat board Size (L x W) | 400x600mm |
3 | Max Stamping Size (Lx W) | 400x600mm |
4 | Max Mark Size (L x W) | 400x600mm |
5 | Min Mark Size (Lx W) | 100x100mm |
6 | Mark Thickness | 20mm |
7 | Stamping Height | 80mm |
8 | Worktable Height | 980+_30mm |
9 | Sidle table Front/Back Stroke | 400mm |
10 | Sidle table Speed | 50-100mm/sec |
11 | Max Capacity | 600P/H |
12 | Max Pressure | 22T |
13 | Fuel pump max Pressure | 200Kg/cm2 |
14 | Power Source | 3 phase ,380V,50/60Hz |
15 | Fuel tank capacity | 110L |
16 | Heat Plate Power | 4.8Kw |
17 | Total Power | 8.5Kw |
18 | Machine Dimension (W x Lx H) | 1190x1179x1600mm |
19 | Machine Weight | 1400Kg |
Universal Accessories Included tools:
Item | Specification | QTY |
Foot switch assembly | Large foot brake + air plugs | 1group |
Keys | comes | 2 piece |
Tool Box (Blue) | 5´´ | 1 piece |
Wrench | 0-24mm | 1 pcs |
Ball Hex Wrench | 2-10mm | 1set |
Screwdriver | 1 set | |
Phillips screwdriver | 1 set | |
Manual | HH4060-20T | 1 set |
