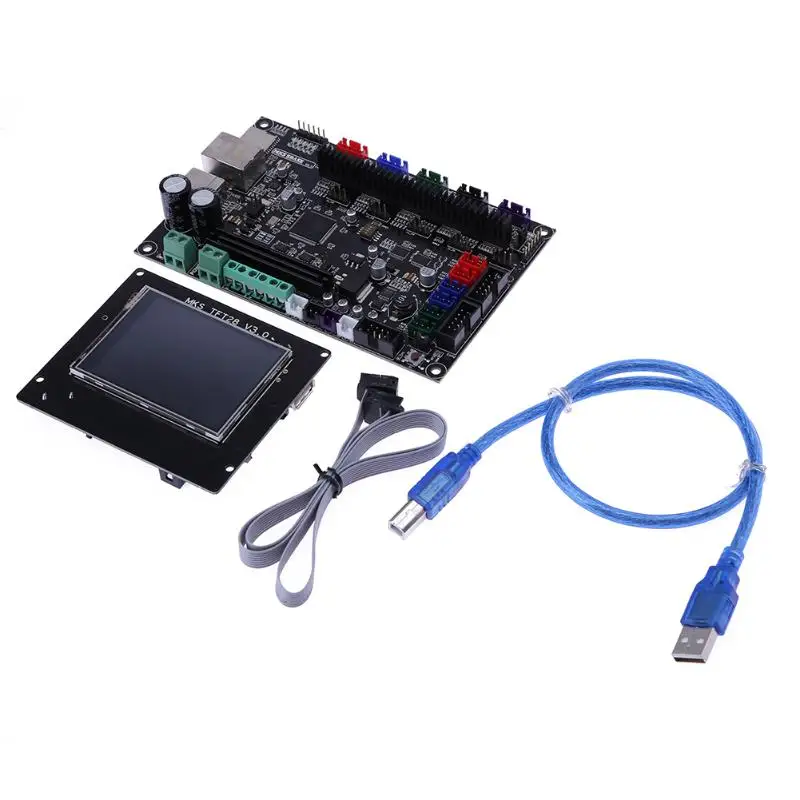

Wonderful New 3D Printer 32bit MKS SBASE V1.3 Control Board +MKS TFT28 LCD Touch Display with Flex Cable for 3D printing

Wonderful New 3D Printer 32bit MKS SBASE V1.3 Control Board +MKS TFT28 LCD Touch Display with Flex Cable for 3D printing printer systems Rating: 5 out of 5

Best Laser Printer Machine Sale Choice Collections provide printer parts,printer equipment Wonderful New 3D Printer 32bit MKS SBASE V1.3 Control Board +MKS TFT28 LCD Touch Display with Flex Cable for 3D printing. Get Discount Now! Only US $82.70/piece at this time. Hurry buy Now before back to normal price! Normal price US $91.89 or you can Check price now. Dont waste your time. Buy Now only in niceol Trusted Seller Store!

Features: 1. Using 32-bit 100M Cortex-M3 LPC 1768 master chip, performance greatly improved. 2. Support a high degree of modular open source firmware to facilitate the secondary development, eliminating the need to grasp the core code to worry about. 3. Support network function, through the network cable can be directly connected to the network, the use of the browser can achieve remote control. 4. Using 8825 as a motor driver to support 32 subdivision, performance far more than 4988, using SOP package, better heat dissipation. 5. The stepper motor current is set directly without worrying about damaging the drive or potentiometer when adjusting the current. 6. The circuit board uses high-quality 4-layer board, and specially made heat optimization. 7. Using a dedicated power chip to support 12V-24V power input. 8. Can be connected to 12864LCD. 9. Touch screen MKS TFT28. Pre-use instructions: 1. Before powering on, do confirm whether the positive or negative is connected correctly. Problems due to reverse connecting of the burned power does not belong to warranty. 2. Please do not plug the motor when it is powered on. It is easy to cause burned drive. Do not run the motor in the process of adjusting the current. The correct way is that first disconnect the power, unplug the motor, and then re-power, adjust the potentiometer, measure the voltage on the potentiometer until the measured voltage is the same as expected. 3. At present, MKS SBASE only support TFT series and LCD12864 display, not 2004, OLED display. MKS SBASE and MKS TFT Touch Screen How to use: 1.Copy firmware.bin and config from config file to SD card (SD smaller than 64Gb). Need to change config name . 2. Adjust config.txt according to the configuration . 3.Refer to MKS-SBASE PIN , make correction connection. Such as stepper motor ,endstops. 4.Plug the SD card to the board, after power on, it will automatic update . 5.If connect computer with USB, need to install the driver (Refer to below specification ). Install the Driver: First, you should upload the zip file. Then, plug the USB to computer . Next, enter device manger . Then will turn up COM after install successfully. Download Firmware and Update: 1. Please upload firmware (please contact us to receive the firmware link) 2. Copy configuration (including firmware.bin and config.txt) to SD card, insert to the board and power on, it will automatic update . 3. After successful updated, the file name will turn into firmware.cur. Others: 1.Support Gcode. Please refer toG-Codes.htm . 2.Main parameter setting 3. It is very easy to set the parameter . First, open config.txt on SD card, then modify the parameters and save. Re-power on. MKS TFT32 3.2 LCD Display: MKS-TFT32 is a colorful touch screen LCD, it is suitable for many main board, such as MKS BASE, MKS GEN, MKS MINI, MKS SBASE, etc. Do not like MKS TFT28, MKS TFT32 do not support external power supply, can not work with Ramps1.4. Boot Setting: Step 1: turn on MKS TFT32 at first time, then enter > setting > connection, select baud rate that the firmware use. Step 2: enter > setting >model, choose printer type, only Delta and other two options Others: enter > setting > touch screen correction, improving accuracy. Firmware Update: Copy the latest update firmware to SD card root directory, including: 1. mkstft28.bin. 2. mks_config.txt. 3. mks_pic. Please do not adjust the file name. Insert SD card, it will update automatically after restarts. WIFI Connection: 1. MKS TFT can support MKS WIFI module. 2. After MKS TFT works with MKS WIFI module, can use Printrun, Repetier-Host to proceed remote connect and control. But it may make some functions unavailable. 1. Configuration on single and double nozzle : change the value after the colon of cfg_sprayer_counter into the nozzle you need.( 1 is single nozzle; 2 is double nozzle ) 2. Heated bed configuration: change value after the colon of cfg_custom_bed_flag into custom requirements you need.( 1 is with heated bed; 0 is without heat bed. 1 x MKS TFT28 3.2 inch LCD Display 1 x MKS SBASE Board V1.3 1 x Flex Cable 1 x USB Cable 1.WORLDWIDE SHIPPING.(Except some countries and APO/FPO) 2. Orders processed timely after the payment verification. 3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address. 4. The images shown are not the actual item and are for your reference only. 5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit time may vary, particularly during the holiday season. 6. If you have not received your orderafter 30 days from payment, please contact us. We will trace your order and get back to you asap. Our goal is customer satisfaction! 7. Delivery Time: 1. You have 7 days to contact us and 30 days to return it from the date received. If the item is in your possession more than 7 days, it will be considered used and WE WILL NOT ISSUEA REFUND OR REPLACEMENT to you. There are NO EXCEPTIONS! Shipping cost is bear by both seller and buyer in half. 2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your order ID. 3. We will refund YOUR FULL WINNING BID AMOUNT, upon receipt of the item in its original condition and packaging with all components and accessories included, AFTER BOTH Buyer and Seller cancel the transaction from aliexpress. OR, you may choose to have a replacement. 4. We will bear all the shipping cost if the product(s) is (are) not as advertised. 1. 12 months Manufacturer’s limited Warranty for defective items (excluding items damaged and/or misused after receipt). Accessories come with a 3-month warranty. 2. Defective items MUST BE reported and returned within the warranty period (and in the original packaging, if possible). You must tell us what the defect is and give us your order number. WE DO NOT REPAIR OR REPLACE ITEMS WITH AN EXPIRED WARRANTY. You agree to all of the above-listed policies upon ordering on aliexpress! We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important. We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can perform up your satisfaction. It is impossible to address issues if we do not know about them!
