Best Laser Printer Machine Sale Choice Collections provide printer terminal,printer system,3d printer,printer machine Fantastic Discount 3D printer controller motherboard MKS SBASE V1.3 32-bit ARM Cortex for Smoothieware integrated Microcontroller open source. Get Discount Now! Only US $44.59/piece at this time. Hurry buy Now before back to normal price! Normal price US $49.00 or you can Check price now. Dont waste your time. Buy Now only in MacroBase Store Trusted Seller Store!
Take an appearance at our evaluation to obtain the very best items you want. You could check out detail info concerning this product listed below. Check out our review to acquire the ideal goodss you favor. You could read detail info about this item listed below. Discount Fantastic Discount 3D printer controller motherboard MKS SBASE V1.3 32-bit ARM Cortex for Smoothieware integrated Microcontroller open source product costs as well as schedule are precise since the date/time showed and also go through transform. Any kind of price and also availability information displayed on this site at the time of acquisition will use to the purchase of this item.

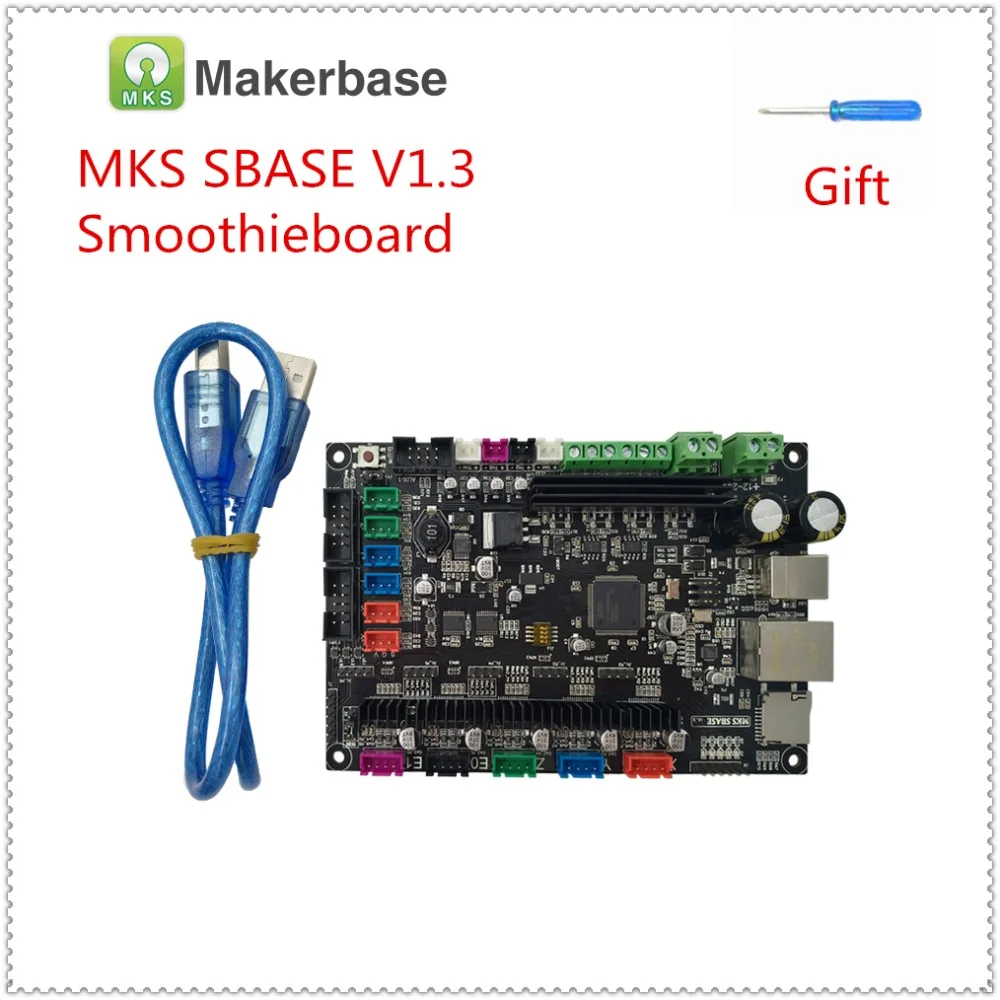

Name: Smoothieboard MKS SBASE V1.3 Packing List 1pcs * MKS SBASE V1.31pcs * USB1pcs * ScrewdriverFeatures- Support highly modular open source firmware Smoothieware. Easy to edit config.txt file. No complicate firmware editing necessary.
- Fully supports network functionality. Besides the regular USB connection an Ethernet network cable can be connected directly to a network for browser control. Board IP address can be configure in config.txt.
- Setcurrent directly on config ,protect driver or potentiometer from getting burned when adjust the current.
- This circuit board with high-quality 4-layer and better heatsink.
- Using a dedicated power supply chip, stably ensure power output.
(Please note that MKS SBASE cant work with OLED12864 and LCD2004 display.)
More features as following

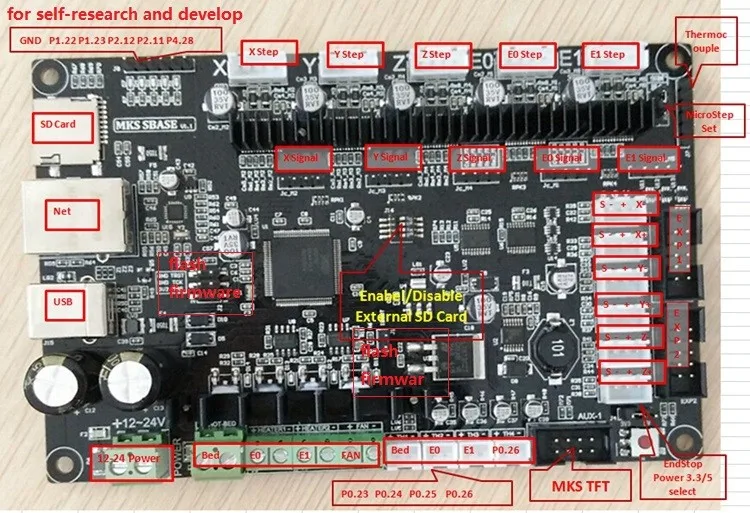

Wiring

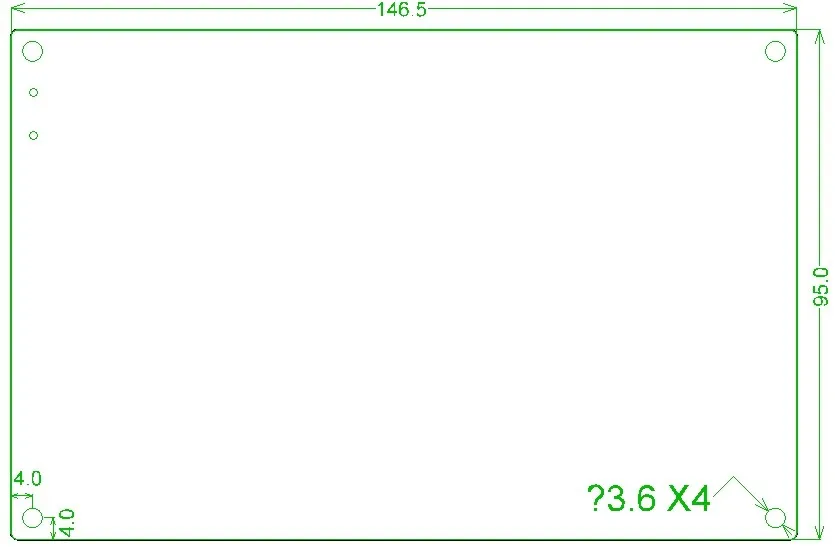

MKS SBASE Size

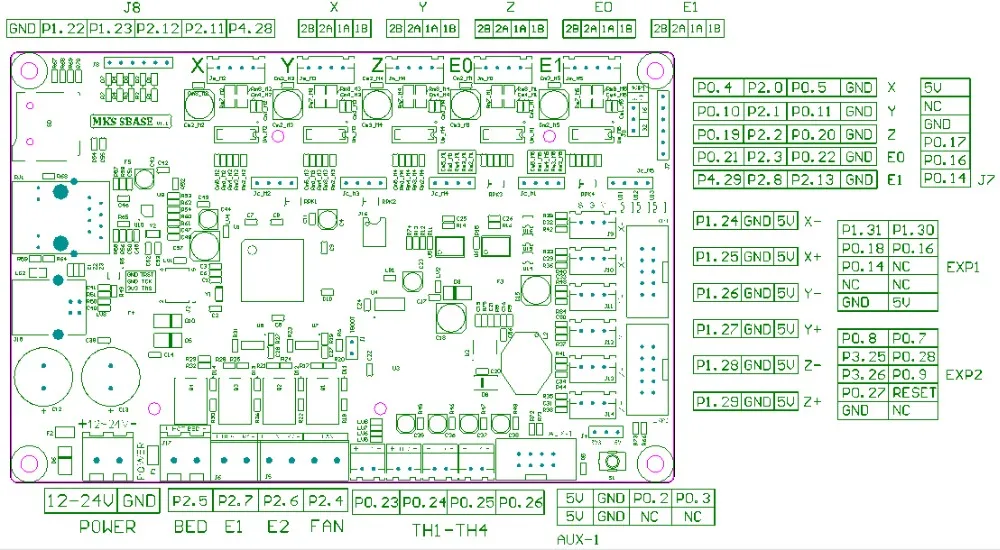

MKS SBASE PIN
How to use
1.Copy “firmware.bin” and “config” from config file to SD card (SD smaller than 64Gb)
. Need to change config name .
For example:
Change
into
.2. Adjust config.txt according to the configuration .
3.Refer to MKS-SBASE PIN , make correction connection. Such as stepper motor ,endstops.
4.Plug the SD card to the board, after power on, it will automatic update .
5.If connect computer with USB, need to install the driver (Refer to below specification ).
Install the Driver
First, you should upload the zip file.
Then, plug the USB to computer . Next, enter device manger .
Then will turn up COM after install successfully.
Download Firmware and Update
Copy configuration (including firmware.bin and config.txt) to SD card, insert to the board and power on, it will automatic update .
After successful updated, the file name will turn into firmware.cur.

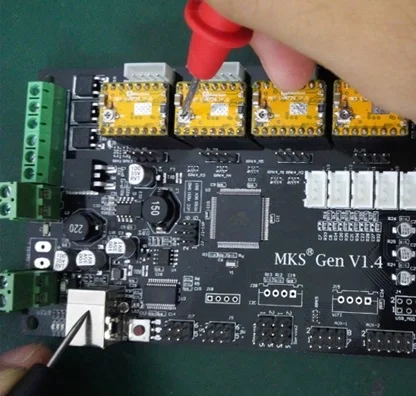

How to Adjust Driver Current. Caution! Please mind the power polarity and drivers direction. Please don’t put the drivers or motors on/off while power on. Please disconnect all motors when adjust driver current.A4988(1amp)I= vref /1.6,default Vref 1.6V and 0.5A,Max1.0A. A4988(2amp)I= vref /0.8,default Vref 0.8V and 1.0A,Max2.0A. DRV8825I= vref *2, default 0.65A and 1.3A,Max 2.5A. LV8729I= vref /0.5, default 0.4A and 0.8A,Max 1.5A.Following picture shows how to check the Vref.
Attention,please!
If one of your mainboard or LCD is not produced by Makerbase or from us,
please make one connecting terminal refer to following way.
