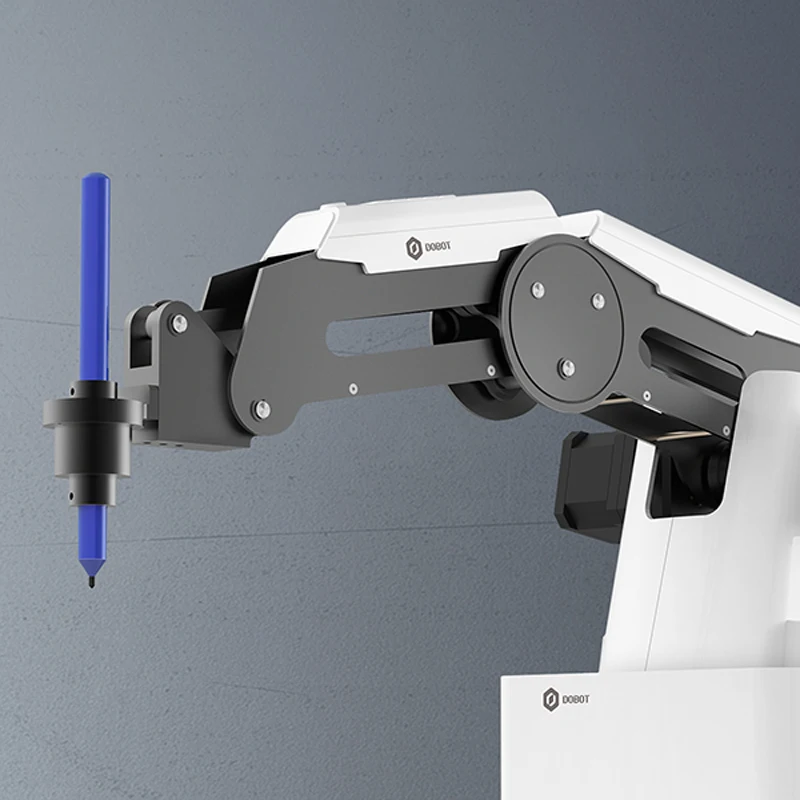

Multifunctional intelligent robot arm writing calligraphy and drawing 3D printing laser engraving mechanical arm

Parameters
Number of axles	4
Payload	500g
Maximum stretch distance	320mm
Repeatability precision	0.2mm
CI	USB(USB-to-UART)/ WIFI/ Bluetooth
Supply Voltage	100V-240V, 50/ 60 Hz
Power input	12V / 7A DC
Power	60W Max
Working TEMP	-10℃-60℃

Axis motion parameter
Axis	Working range	Maximum speed (work load 200g)
Axis 1 base	-135°to +135°	320°/ s
Axis 2 big arm	0°to +85°	320°/ s
Axis 3 small arm	-10°to +95°	320°/ s
Axis 4 rotation	+90°to -90	480°/ s

Physical characteristics
Weight	4KG
Base size	158mm*158mm
Material	Aluminum Alloy 6061, ABS Engineering Plastic
Control box	Dobot Integrated Controller
Rotbot Installation	Desktop
Packing specification (L * w * h)	330mm*224mm*307mm

Software applications
Software	DobotStudio, Repetier Host GrblaController3.6, Graphic Programing
SDK(software development kit)	Communication protocol, Dobot Library
Extended I/O interface	1.I/O*10 (for analog signal input or pulse output)
	2.Controllable 12V voltage output port *4
	3.CI（UART, Reset 12V.3.3V and two I/O included）
	4.Extended stepper motor interface *2

End-of-arm tooling
3D printing	Size(L*W*H)	150MM*150MM*150MM
	Material	PLA
	Resolution	0.1MM
Laser	Power Consumption	500mw
	Type	405nm(Blue laser)
	Power	12V, TTL trigger
Pen holder	Pen Diameter	10mm
Sucker	Sucker Diameter	20mm
	Pressure	-35Kpa
Claw	Range	40mm
	Drive mode	Air-operated
	Gripping ability	8N
