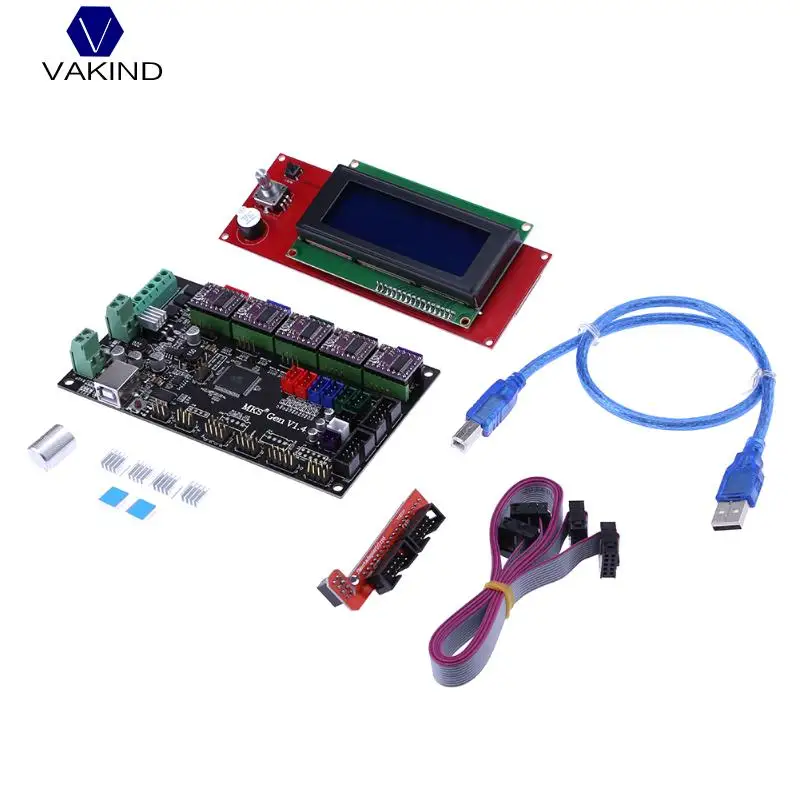

Fantastic New 3D Printer Kit with MKS Gen V1.4 Control Board Main Board+ 2004LCD+5pcs 8825 Driver for 3D Printing

Fantastic New 3D Printer Kit with MKS Gen V1.4 Control Board Main Board+ 2004LCD+5pcs 8825 Driver for 3D Printing Rating: 4.7 out of 5

Best Laser Printer Machine Sale Choice Collections provide printer system,laser printer,printer roll,3d printer Fantastic New 3D Printer Kit with MKS Gen V1.4 Control Board Main Board+ 2004LCD+5pcs 8825 Driver for 3D Printing. Get Discount Now! Only US $42.54/piece at this time. Hurry buy Now before back to normal price! Normal price US $51.25 or you can Check price now. Dont waste your time. Buy Now only in VAKIND Global Store Trusted Seller Store!
Overall perfect item!

Features for MKS GEN V1.4 : 1. 2560 and ramps1.4 set in one board, give solution to the Ramps1.4 combination interface cumbersome and easy to fail problems;
2. Replaceable motor drive, support 4988, 8825 and TMC 2100 drives;
3. The circuit board using high-quality 4-layer board which has been specifically thermal optimized; ramps is a 2-layer board;
4. High-quality MOSFET tube, better heat dissipation;
5. Dedicated power chip to support 12V-24V power input to solve the Ramps voltage conversion chip heating problem;
6. It can bear 24V input and can reduce hot bed current to 1/4 at the same system power, effectively solving the heat pump MOS tube heating problem;
7. Open source firmware Marlin can be used; configuration is exactly the same as ramps1.4 and it can directly replace Ramps1.4;
8. It can be directly connected with Ramps1.4, 2004LCD control board and 12864LCD control board.
9. Reserve the motor pulse and the direction output port to facilitate that external high current needs to external connection with high current (such as 2A, 5A) motor drive circuit;
10. Retain Ramps1.4 Servos, AUX-1, AUX-2 interface, providing three 5V outputs and three 12V output interface;

MKS GEN V1.4 Specifications:
Model: MKS GEN V1.4
Type: motherboard
Applicable to: 3D printer
Applicable drives: 4988/8825/2100/8729

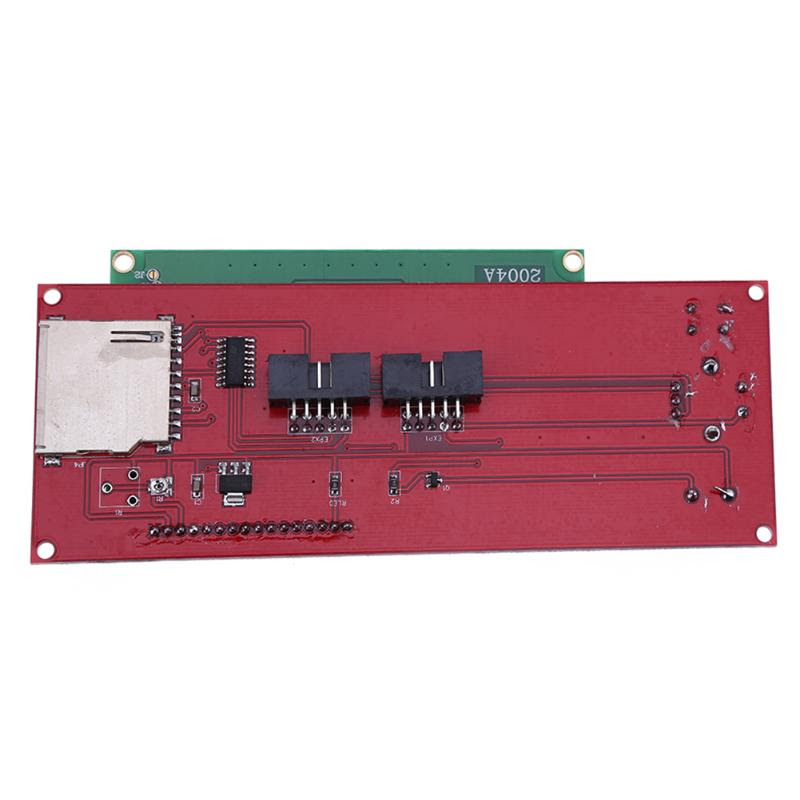

2004LCD Features:
Large-screen 2004 LCD display
In the back is integrated SD card connector, SD card file on the LCD by segment select the appropriate file to print
The product is equipped with an encoder, you can achieve parameter adjustment and file selection to print
Plug and play, but firmware modification support is needed

2004LCD Specifications:
Model: 2004A
Type: display
Connection type: conductive tape
Interface: single row parallel port
Backlight type: EL / LED
Operating voltage: +5V
Display screen: blue screen
Operating temperature: -10 ~ +60 ℃
Controller: SPLC780
Storage temperature: -20 ~ +70 ℃
Positioning hole size: 3.0mm (also known as M3)
Button size: 12 x 12 x 16mm/0.47 x 0.47 x 0.63"
View size: 76.0 x 26.0mm/2.99 x 1.02"
Point size: 0.55mm x 0.55mm
Character size: 29.5mm x 47.5mm/1.16 x 1.87"
Display content: 20 characters x 4 lines

8825 step motor driver Features:
1. 2.5A maximum current;
2. the maximum support 32 subdivision.
3. 4 layer PCB StepStick, better heat dissipation;
4. Smaller chip resistance, lower heating, better heat dissipation;

8825 step motor driver Specifications:
Model: DRV8825
Type: stepper motor driver
Size: 15mm x 20mm/0.59 x 0.79"
Drive current: 2.5A
Subdivision: 1, 1/2, 1/4, 1/8, 1/16, 1/32
Producing craft: SMT chip mounter manufacturing, stable performance
1 x Control Board
1 x Data Cable

1 x 3D Printer Controller LCD Display (SD card not included)
1 x L Shape Adapter
1 x Knob

2 x Flex Cables

5 x Heatsink
