3D Printer Board Lerdge-X Motherboard with Thermistor ARM 32 bit Controller with 3.5" TFT for Education 3D Printer
Announcement:
Dear buyers,
Hello! After the Chinese Spring Festival holidays, there are a lot of Lerdge board orders to deliver, and the current stock has been sold out (Time: 2018.2.25). Considering the factory production cycle, its scheduled to resume the normal delivery around March 10th. Since the orders will be closed by the system if not shipped within 7 days after the payment confirmed, if you plan to buy the Lerdge boards, please add to the shopping cart, and place the order after March 10th.
Sorry about this and thanks for understanding.
Lerdge-X Description

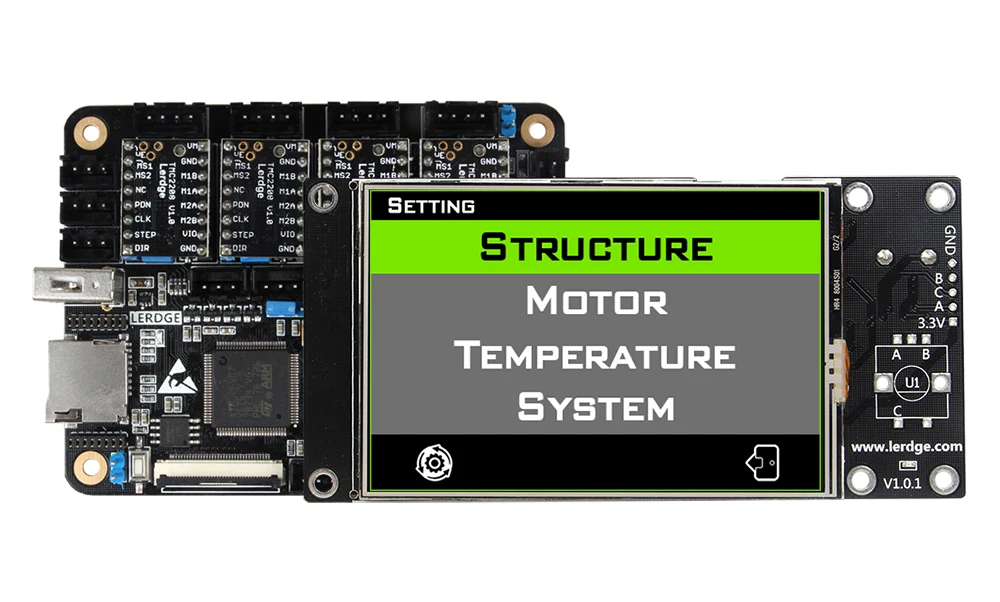

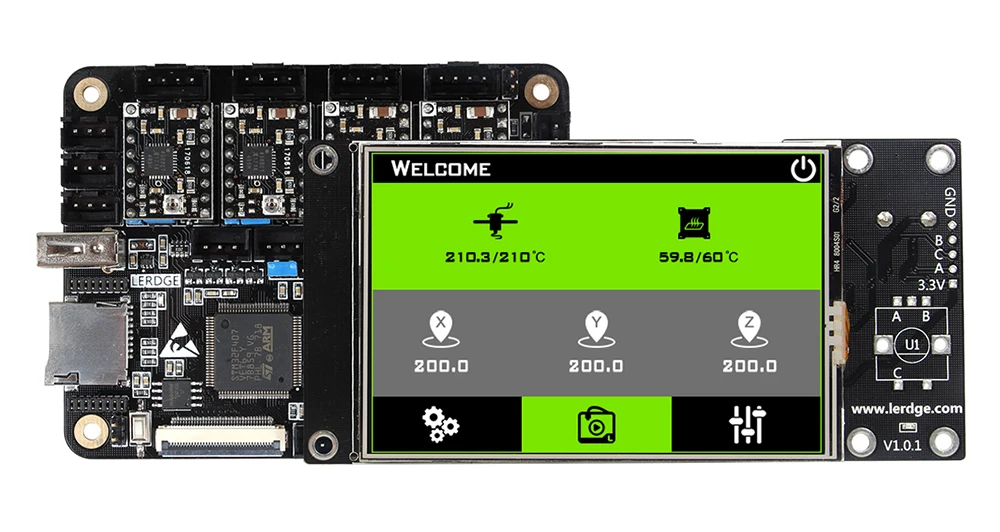

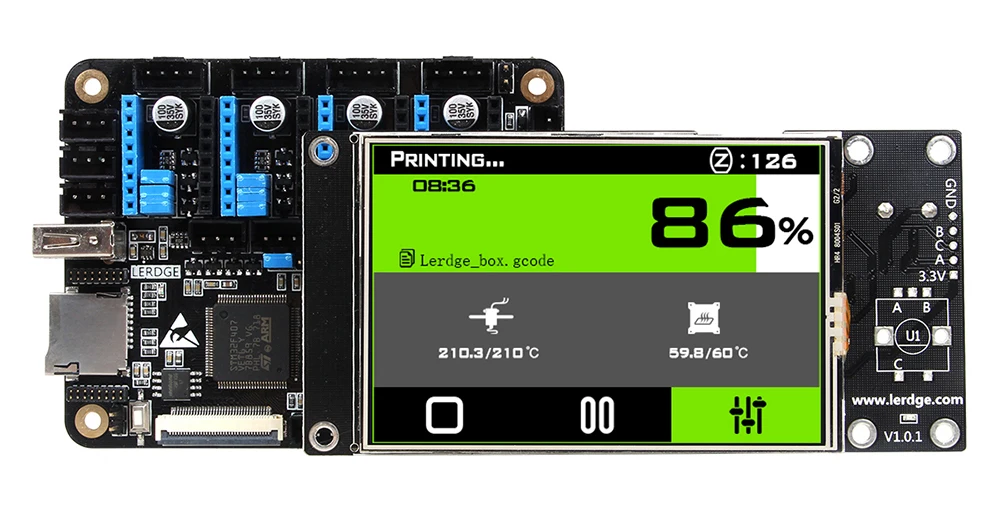

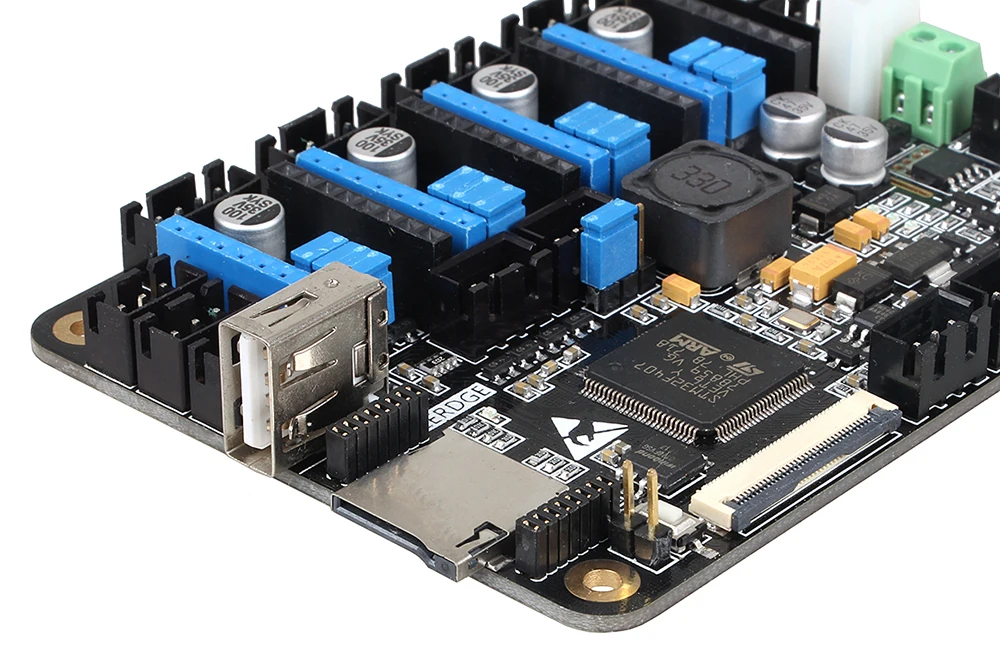

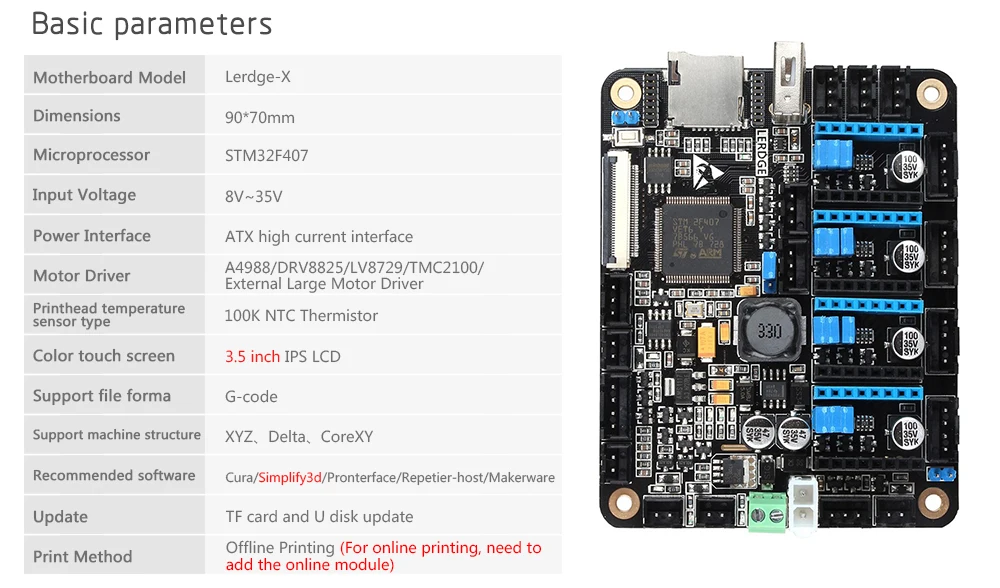

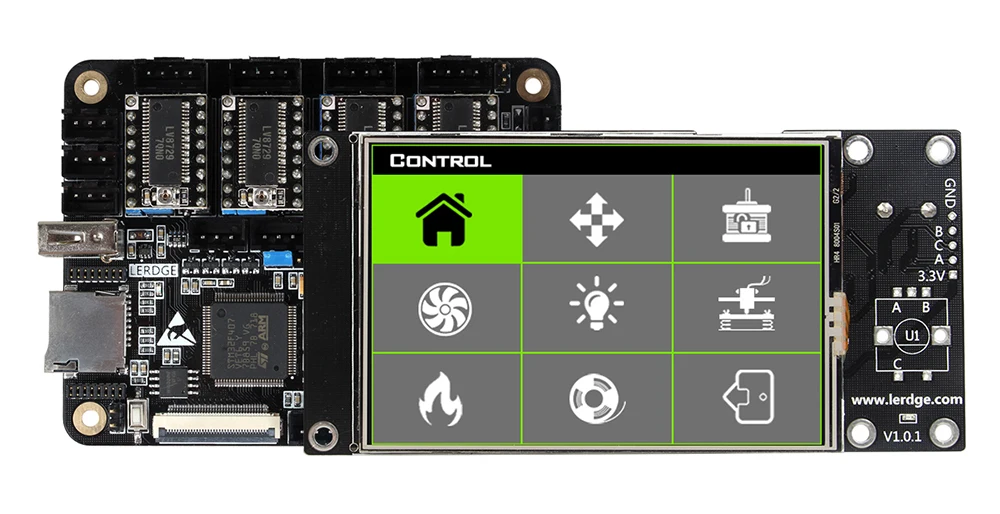

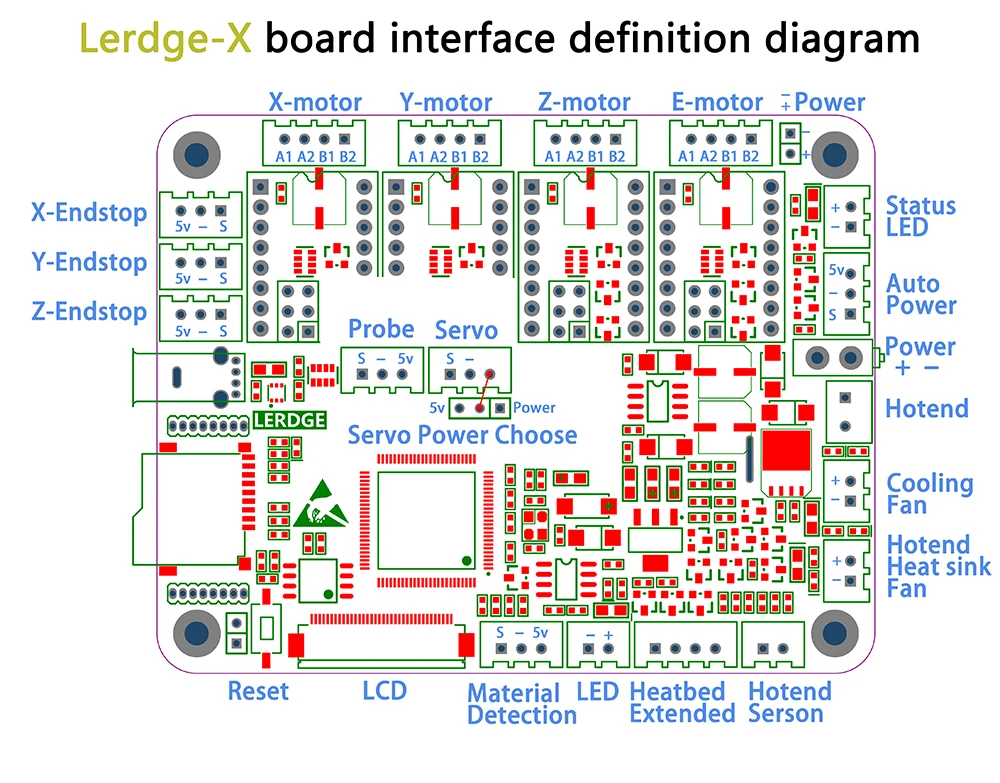

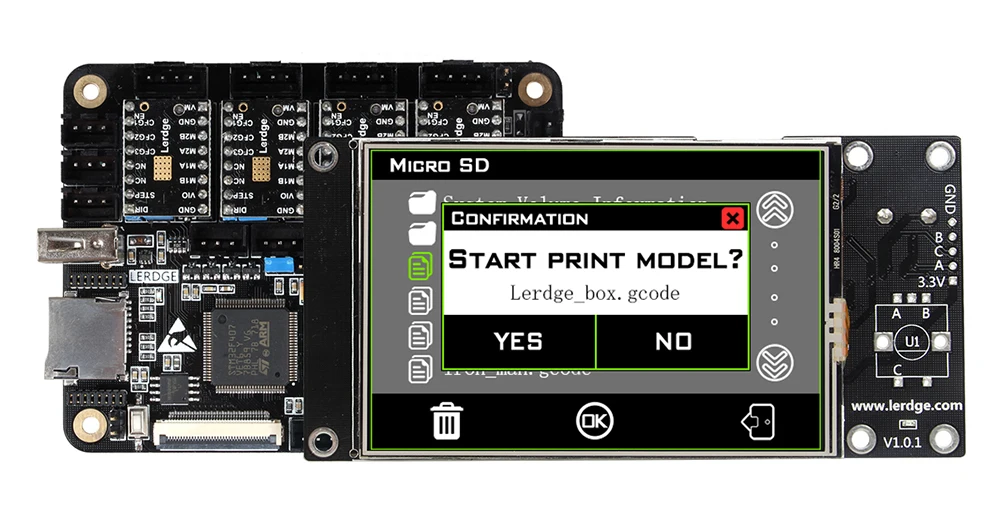

Among Lerdge 3D Printer boards, Lerdge-X is a highly integrated control board designed for the Small 3D Printers, Educational 3D Printers and Entry-level 3D Printers. The mainboard uses a 32-bit coretx-M4 Core control unit, strong and stable performance, feature-rich, price concessions. With 3.5-inch full-color IPS LCD touch screen, it brings the simple and smooth operation. The motherboard uses an open interface, are free to match different motor drive modules (A4988, DRV88225, LV8729, TMC2100, TMC2208 and external driver, etc.) to meet different customer needs. Motherboard optimizes limit switch connection, and with a comprehensive line protection design.
Shipping list:

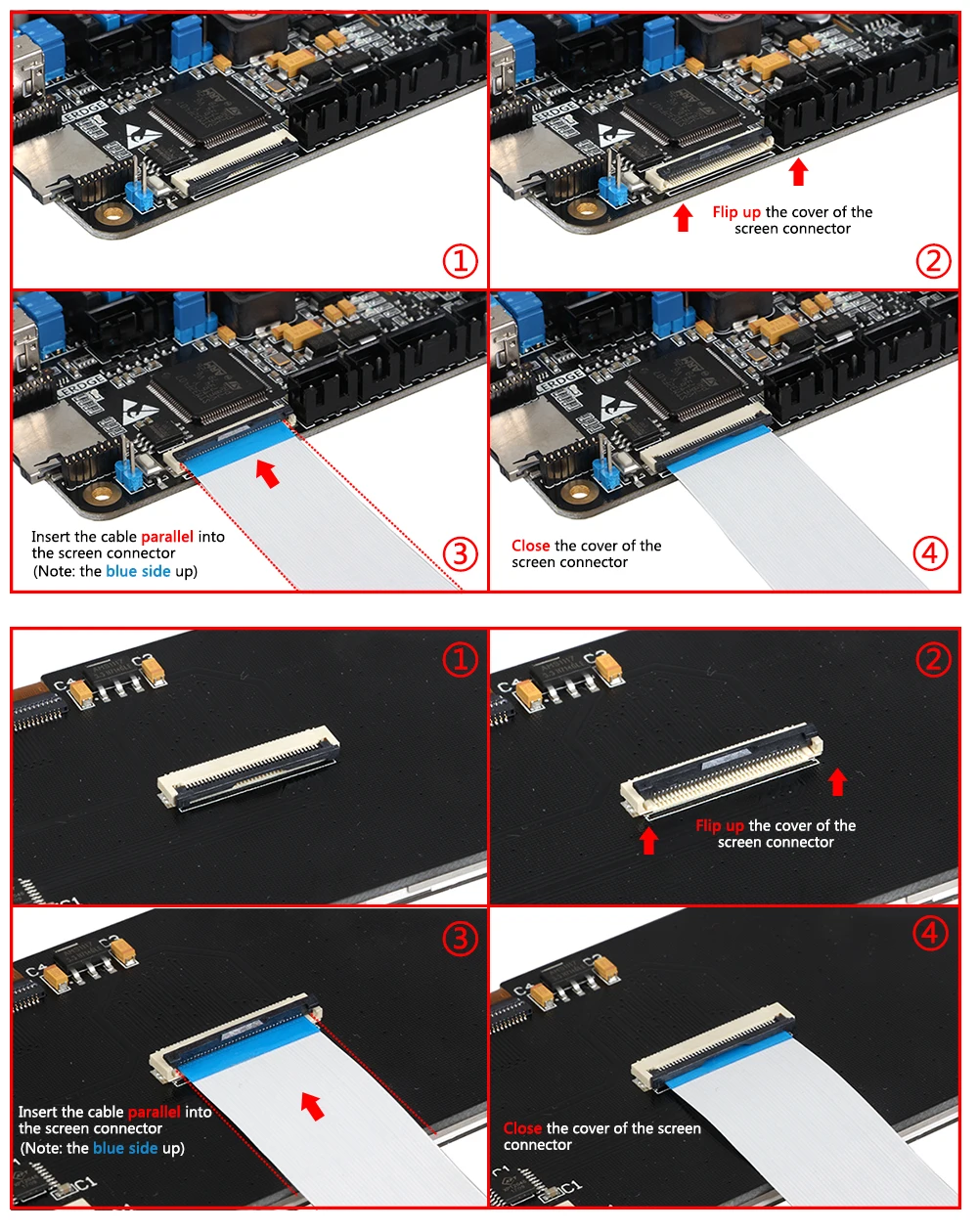

Motherboard (drivers optional), 3.5-inch display, 20cm FCC display cable, 30cm FCC display cable, 30cm power cable, resistance touch pen, nylon material screw nut 1 set, flat screwdriver 1pc.
(Note: If choose Lerdge-X boadr with drive adapter module, then the 4pcs of drivers will be 3pcs of the drive adapter modules for XYZ and 1pc of A4988 for E.)
Buying advice:

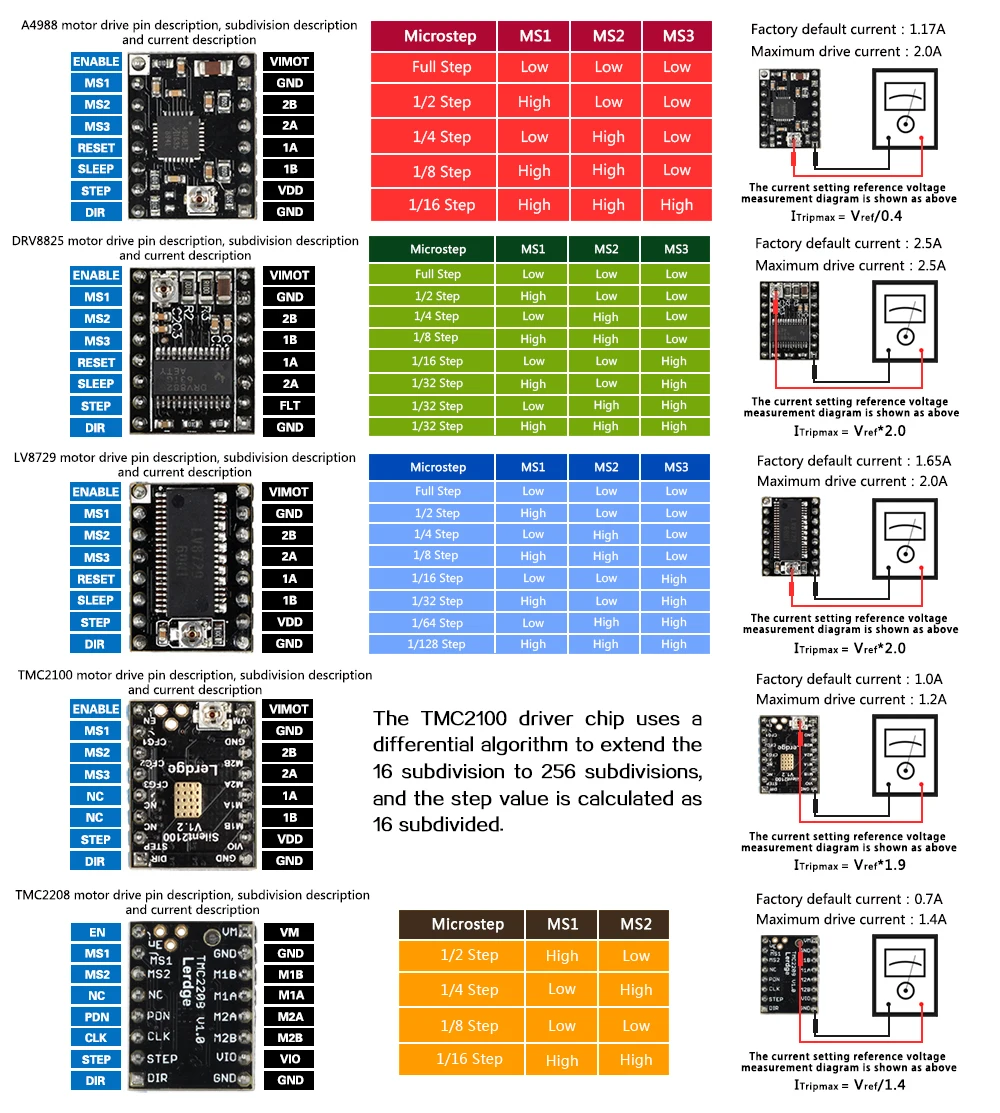

It is recommended that the motherboard is equipped with Lerdge drivers. The Lerdge motherboard currently supports A4988, DRV8825, LV8729, TMC2100, external large motor adapter and TMC2208 (other drivers not tested yet, not suggested to use). In addition, the length of the touch screen cable is recommended not to be longer than 70cm, otherwise it may cause the touch screen display interference.
Note: We strongly recommend the users to order together with our drivers used for the Lerdge boards. Or at least, please make sure the drivers you use are in good quality. And do make sure the drivers are inserted correctly. Or it may burn the board. Thanks for your always support!
1. More modules used with the Lerdge-X motherboard will be available, please add our store to your list for more convenient checking.
2. Web page online parameters configuration tool:
3. The latest firmware download address: (Note: Please update with the Lerdge-X board firmware, which is different from the previous boards firmware.)
Compared with the previous Lerdge-S motherboard, Lerdge-X new motherboard no longer supports double-headed expansion module, and does not directly support the heated bed (need to use with the heated bed adapter module and the power expansion module). Other functions are no different. The older version of the Lerdge-S motherboard will be upgraded to Lerdge-S+ motherboard. One board is with more features to achieve, integrated with most of the functions, no need expansion.
Temperature measuring type:
Resistance temperature measuring NTC100K B3950 (If with the in our store, it can print high-temperature material.)
About the power continued to play function:

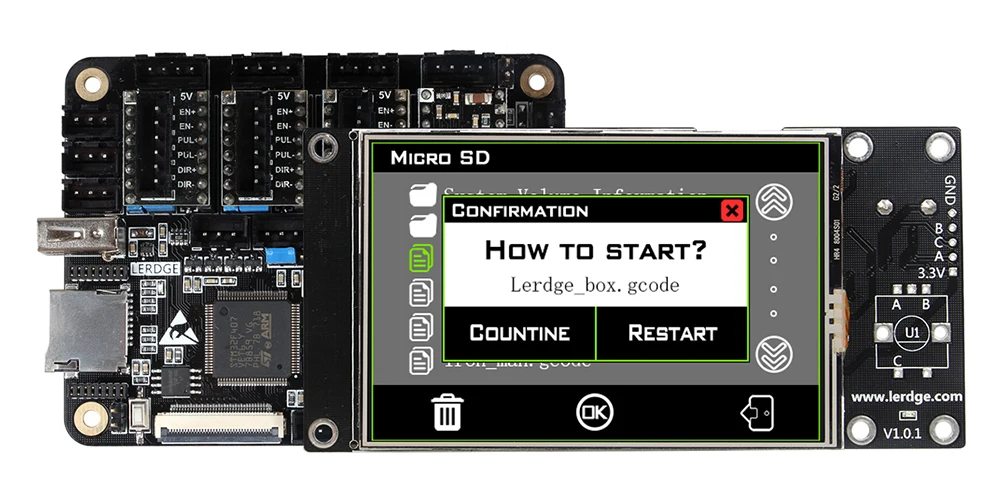

Lerdge-X motherboard comes with print pause, print save, boot continue to print function. For accidental power outage, power failure to save continued playing, shut down after printing finished functions, the additional is required.
About printing:
Lerdge-X motherboard supports off-line printing by default (TF card printing or U disk printing). If you need online printing, an is needed. --- Lerdge-X motherboard U disk printing supports USB2.0 and USB3.0.
About heated bed:
If want to use Lerdge-X motherboard with heated bed, the and are required.
Please feel free to contact us for more details!
