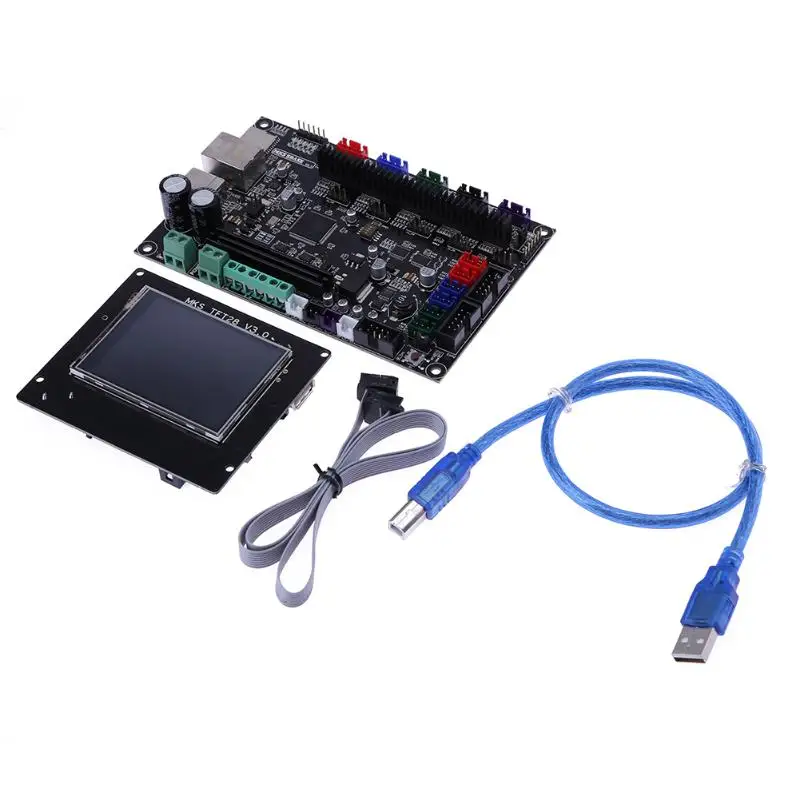

Big Stock Promotion 3D Printer Parts Accessories Kit for MKS SBASE V1.3 32bit Control Board + TFT28 3.2 LCD Touch Display Support Network Function

Big Stock Promotion 3D Printer Parts Accessories Kit for MKS SBASE V1.3 32bit Control Board + TFT28 3.2 LCD Touch Display Support Network Function printer systems Rating: 2.9 out of 5

Best Laser Printer Machine Sale Choice Collections provide printer terminal,printer system,new printer Big Stock Promotion 3D Printer Parts Accessories Kit for MKS SBASE V1.3 32bit Control Board + TFT28 3.2 LCD Touch Display Support Network Function. Get Discount Now! Only US $88.00/piece at this time. Hurry buy Now before back to normal price! Normal price US $104.76 or you can Check price now. Dont waste your time. Buy Now only in Voyager Agreement Store Trusted Seller Store!

These days this product is really economical for practically everyone and also its an extremely good buy for the cash.

Features: 1. Using 32-bit 100M Cortex-M3 LPC 1768 master chip, performance greatly improved. 2. Support a high degree of modular open source firmware to facilitate the secondary development, eliminating the need to grasp the core code to worry about. 3. Support network function, through the network cable can be directly connected to the network, the use of the browser can achieve remote control. 4. Using 8825 as a motor driver to support 32 subdivision, performance far more than 4988, using SOP package, better heat dissipation. 5. The stepper motor current is set directly without worrying about damaging the drive or potentiometer when adjusting the current. 6. The circuit board uses high-quality 4-layer board, and specially made heat optimization. 7. Using a dedicated power chip to support 12V-24V power input. 8. Can be connected to 12864LCD. 9. Touch screen M K S TFT28. Pre-use instructions: 1. Before powering on, do confirm whether the positive or negative is connected correctly. Problems due to reverse connecting of the burned power does not belong to warranty. 2. Please do not plug the motor when it is powered on. It is easy to cause burned drive. Do not run the motor in the process of adjusting the current. The correct way is that first disconnect the power, unplug the motor, and then re-power, adjust the potentiometer, measure the voltage on the potentiometer until the measured voltage is the same as expected. 3. At present, MKS SBASE only support TFT series and LCD12864 display, not 2004, OLED display. M K S SBASE and M K S TFT Touch Screen How to use: 1.Copy firmware.bin and config from config file to SD card (SD smaller than 64Gb). Need to change config name . 2. Adjust config.txt according to the configuration . 3.Refer to M K S-SBASE PIN , make correction connection. Such as stepper motor ,endstops. 4.Plug the SD card to the board, after power on, it will automatic update . 5.If connect computer with USB, need to install the driver (Refer to below specification ). Install the Driver: First, you should upload the zip file. Then, plug the USB to computer . Next, enter device manger . Then will turn up COM after install successfully. Download Firmware and Update: 1. Please upload firmware (please contact us to receive the firmware link) 2. Copy configuration (including firmware.bin and config.txt) to SD card, insert to the board and power on, it will automatic update . 3. After successful updated, the file name will turn into firmware.cur. Others: 1.Support Gcode. Please refer toG-Codes.htm . 2.Main parameter setting 3. It is very easy to set the parameter . First, open config.txt on SD card, then modify the parameters and save. Re-power on. M K S TFT32 3.2 LCD Display: M K S-TFT32 is a colorful touch screen LCD, it is suitable for many main board, such as M K S BASE, M K S GEN, M K S MINI, M K S SBASE, etc. Do not like M K S TFT28, M K S TFT32 do not support external power supply, can not work with Ramps1.4. Boot Setting: Step 1: turn on M K S TFT32 at first time, then enter > setting > connection, select baud rate that the firmware use. Step 2: enter > setting >model, choose printer type, only Delta and other two options Others: enter > setting > touch screen correction, improving accuracy. Firmware Update: Copy the latest update firmware to SD card root directory, including: 1. m k stft28.bin. 2. m k s_config.txt. 3. m k s_pic. Please do not adjust the file name. Insert SD card, it will update automatically after restarts. WIFI Connection: 1. M K S TFT can support M K S WIFI module. 2. After M K S TFT works with M K S WIFI module, can use Printrun, Repetier-Host to proceed remote connect and control. But it may make some functions unavailable. 1. Configuration on single and double nozzle : change the value after the colon of cfg_sprayer_counter into the nozzle you need.( 1 is single nozzle; 2 is double nozzle ) 2. Heated bed configuration: change value after the colon of cfg_custom_bed_flag into custom requirements you need.( 1 is with heated bed; 0 is without heat bed. 1 x M K S TFT28 3.2 inch LCD Display 1 x M K S SBASE Board V1.3 1 x Flex Cable 1 x USB Cable
