Brif Instruction:

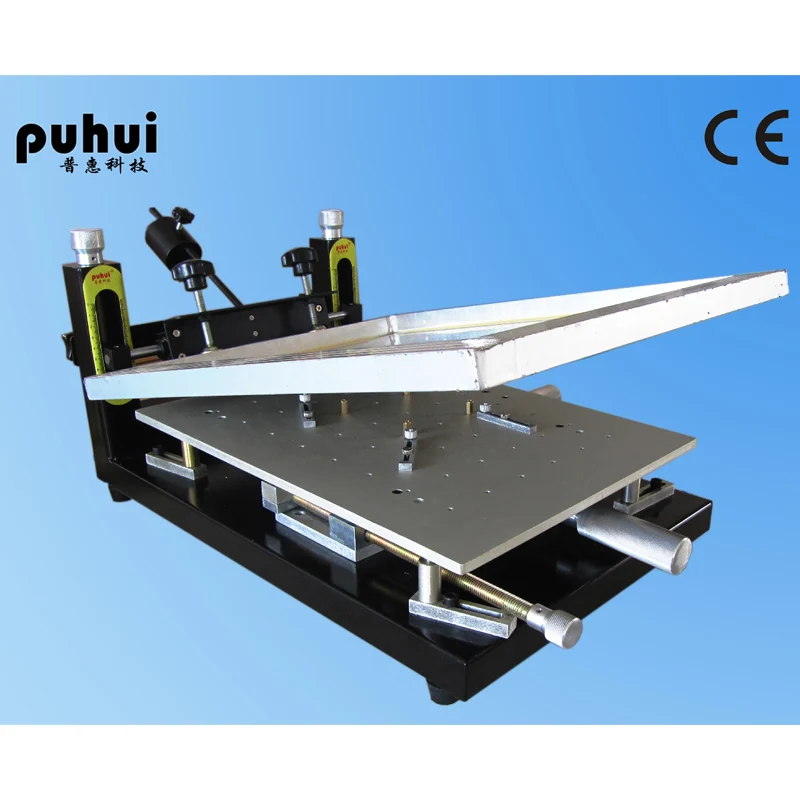

The platform can be rotated 30 degrees at most, and the precision can be kept all the way when repeat works. Easy to locate PCB board, high flexibility ensure high printing precision. The brackets using the bolt bar to adjust the height, convenient for controlling the thickness of PCB.
Specifications:
High Precision Printer | Parameters |
Overall Dimensions (L*W*H) | 580*320*259mm |
Platform Size | 300*400mm |
PCB Size | 270*370mm |
Stencil Size | 370*470mm |
Platform Height | 180mm |
PCB Positioning Mode | Outside/ Reference Hole |
Weight | 12.7kg |
Installation and maintenance
Install: Refer to the install guide
Maintenance: Add grease to the stencil bracket lifting motion/screw rod/ transimission motion on a regular basis.
Printing
A. Put the stencil on the stencil bracket (2) after cleaning stencil, adjust the embossing
star knob (3) to suitable location, then fixed it.
B. Install PCB positioning block (11) and PCB fixation unit (5). Referring to the position
of the positioning hole PCB board position to adjust the distance of the PCB and stencil holder
and fixed (if PCB board is big, need to use support pin (9),Support pin should select the appropriate threaded
hole screwed)
(1) 3)Rotate the upper and lower adjusting handle (1) to adjust the height of stencil bracket. Rotate X-axis adjusting handle (6) and Y-axis adjusting handle (7) to adjust the relative position of the PCB and stencil (If you can not
adjust the relative position within the full stroke, move the stencil position), if angular
difference between PCB board and stencil, need adjust Swing adjusting handle (8), adjust the bolt
height on Platform support base block(10) to make the Platform (4) even without shaking.
4) Using the blade to scrape the solder paste (Squeegee angle of blade and steel stencil should be between 30 degrees to 75
degrees)
5) Clean the stencil regularly
Packing List:
1 x Pinter
1 x Manual
