2018 Promo Rumba Plus Motherboard +TMC2130 V1.1+5xTMC2100 V1.3 Stepping Drivers For 3D Printer Accessories RUMBA Optimized Version Control

2018 Promo Rumba Plus Motherboard +TMC2130 V1.1+5xTMC2100 V1.3 Stepping Drivers For 3D Printer Accessories RUMBA Optimized Version Control printer systems Rating: 4.1 out of 5

Best Laser Printer Machine Sale Choice Collections provide printer machine,printer parts,printer equipment 2018 Promo Rumba Plus Motherboard +TMC2130 V1.1+5xTMC2100 V1.3 Stepping Drivers For 3D Printer Accessories RUMBA Optimized Version Control. Get Discount Now! Only US $101.62/piece at this time. Hurry buy Now before back to normal price! Normal price US $115.48 or you can Check price now. Dont waste your time. Buy Now only in UEB Store Trusted Seller Store!

Economical cost and cost-free delivery. Let's acquire before costs rise.

All of us offer free dispatching worldwide to certain products. Buy now before the cost goes up! Get special price for items only for the first 10 purchasers at this point.

These days this 2018 Promo Rumba Plus Motherboard +TMC2130 V1.1+5xTMC2100 V1.3 Stepping Drivers For 3D Printer Accessories RUMBA Optimized Version Control product is truly budget-friendly for nearly every person and also its a really excellent buy for the loan.

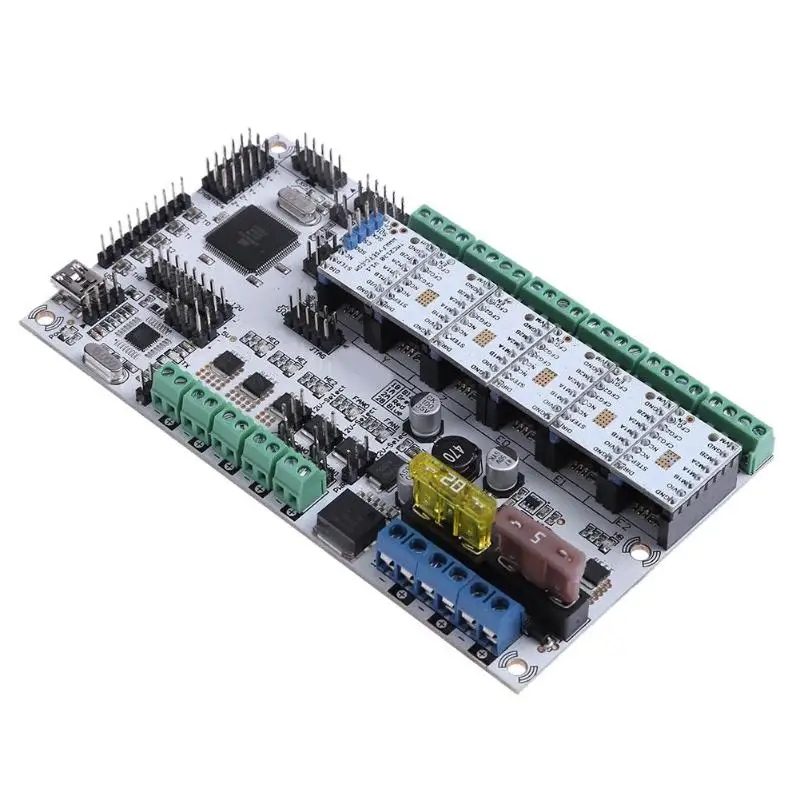

Rumba Plus Motherboard +TMC2130 V1.1+5xTMC2100 V1.3 Stepping Drivers for 3D Printer Descriptions: 1. Rumba and Rumba Plus differences: fuse is pluggable. 2. The electronic part is the brain of the 3D printer, and all the movements are controlled by the electronic part. 3. The electronic part uses an integrated 3D printer control board based on the Mega2560 AVR processor. 4. This circuit board is designed for CNC machining machines such as 3D printers, engraving machines, laser cutting machines and the like. 5. You can use a personal computer to connect to a 3D printer or print directly from an SD card. 6. Due to the integrated design, installation and commissioning is simple. And the use forArduino IDE as a development software, it is easy to upgrade firmware and configurate parameter. Features: 1. Using the same CPU for Arduino Mega, for Atmega2560 as the master chip, with high-performance USB chip Atmega16U2, can be compatible for Ramps related firmware. 2. 5pcs temperature sensor interface inputs. 3. All pins are derived, easy to do more features to expand. 4. With LCD expansion interface, you can connect the Chinese LCD screen SD expansion version, to achieve offline printing (support 2004 and 12864) 5. The steering gear extends the interface for easy addition of auto leveling. 6. Support 6xA4988 16 subdivision driver board. 7. PWM output (heating tube, fan, etc.): 6-way output (1 large current, 3-way current, 2 small current) using high-performance low-conduction resistance MOS tube drive, each output LED as an indication. 8. Power supply part: power input for the 12V-35V, dual power supply design, effectively avoid mutual influence, the hot bed part of the support 11A current, 12V, other parts of the circuit, 5A, 12V, in order to reduce the Mega Controller board high current generated high temperature, Increase 12V cooling fan. 9. The controller board firmware will feature the most widely used Marlin, ease to use with functionality and stability; Specifications: Model: Rumba Type: main control board Material: PCB Chip: Atmega2560 Supported print head: 3pcs print heads Voltage: 12V Supported driver module: 4988 Compiling environment: for Arduino IDE PWM DC output (heating tube, fan, etc.) 6 relay outputs (1 high current, 3 middle current, and 2 small current); Drive with a high-performance and low-resistance Mos tube; Each output has a LED indication; Power supply: Dual-way power supply design to avoid mutual impact (12V power supply is strongly recommended) The hot bed section supports 11A current, 12V voltage; Other parts of the circuit, 5A, 12V In order to reduce the high temperature generated by the high current on the Mega Controller board, it is recommended to add a 12V cooling fan. TMC2100V1.3 Descriptions: 1. MKS TMC2100 stepper motor drive board ultra-quiet drive StepStick is compatible with Arduino. 2. Under high operating temperature without fan, when current is about 0.5A, the operating temperature will be 70 degrees; while when current is 1A, the operating temperature will be more than 150 degree. 3. There may be step out, Do a good job of cooling, and 0.5A working current is strongly recommended. Drive current algorithm and regulation: 1. Drive current algorithm: i = Vref * 1.9 / 2.5, the default Vref is about 0.65V, so the default current is 0.5A and the maximum current is 1A! 2. Vref measures the voltage between Gnd and the potentiometer. 3. When measuring the voltage, you must not connect motor. Otherwise it will get easy to burn drive. 4. It should be connected to the power supply when measuring voltage. Do not just connect USB power supply. Descriptions of using TMC2100 driver module on the motherboard: 1. When using on the motherboard, please remove the three jumper caps under the socket. 2. The module has no subdivided set and the step value is in accordance with the 16 subdivision calculation. 3. The chip internal differential algorithm will be extended from 16 to 256 subdivision. TMC2130 V1.1 Features: 1. The working current of the single phase current is 1.2A ( crest value 2.5A) of the two phase stepper motor that can be adjusted. 2. Only support SPI. 3. Subdivision to 256. 4. Non noise operation with maximum efficiency and optimal motor torque. 5. Load detection of high precision sensorless motor. 6. Reduce energy consumption by 75%. 7. High load drive without loss of step. 8. Motor input voltage range: 4.75~46V 9. Logic interface input voltage: 3~5V Note: Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding. 1 x Rumba Plus Motherboard 1 x TMC2100V1.1+5 x TMC2100 V1.3 Stepping Drivers(It has been welded on the main board) 1 x Data Cable 6 x Hearsinks 1 x Screwdriver 1 x Dupont Line(Color Random)

Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
2018 Promo Rumba Plus Motherboard +TMC2130 V1.1+5xTMC2100 V1.3 Stepping Drivers For 3D Printer Accessories RUMBA Optimized Version Control
