BestName: MKS GEN-L V1.0
This controller board is integrated which is based on Marlin open source,
greatly compatible with Ramps1.4. Further, it is good cost effective with high performance.

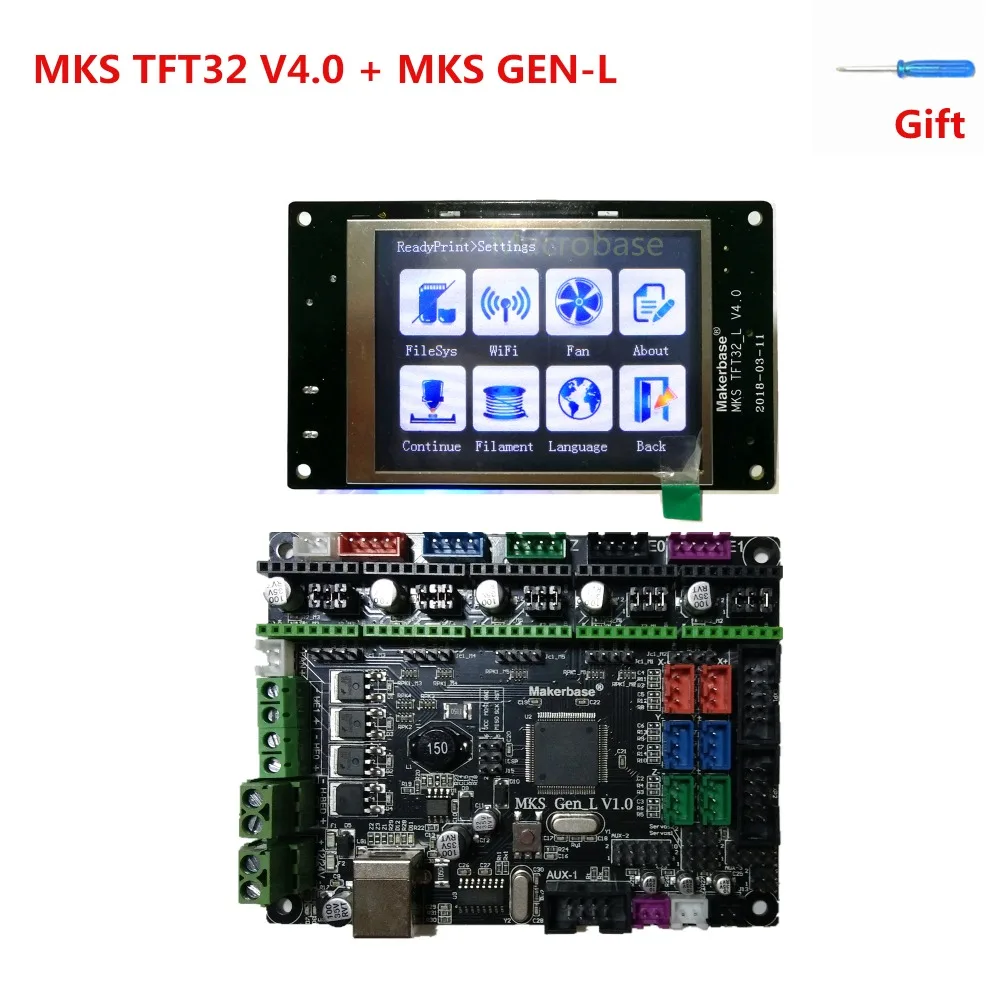

Shipping List
1* MKS Gen-L V1.0
1*MKS TFT32 V4.0
1*USB
1*Flat cable
1* Screwdriver
Features
- Assembly with high quality MOSFET which is good at cooling and ensurestable working in a long time.
- Use dedicated power chip which has excellent cooling and stable electricity.
- Adopt stable and reliable filter circuit to reduce interference. Improve printing performance.
- Highly, improve the MOSFET cooling of heated bed .
- It is easy and safe to assemble motors, drivers and endstops in different color.
More features as following
Wiring
PINOUT
SIZE
The direction of stepper drivers on board.
Following picture shows how to check the Vref.
Name:MKS TFT32 V2.0 Touch Screen
MKS TFT32 is a colorful touch screen which is used independently on 3d printer.
This display is no need to set mainboard firmware and work together directly.
And it is easy to replace into your logo and edit your local language.
Also, it is available to self-define some commands .
Attention: MKS TFT32 can’t work with Ramps1.4.
More features as follows:
Wiring
Size
How to assemble with mainboard.
Set the baud rate, ensure both TFT and controller board are the same.
1.MKS Series mainboards
Such as, MKS SBASE,MKS MINI,MKS GEN,MKS BASE, MKS GEN L,etc.
Flash firmware to mainboard .( TFT display has updated latest config inside already).
Connect TFT display to AUX-1 of the board.
No need to configure on board firmware,they will work together directly after wire.
The boards need a external 12V power supply.
2.Firmware Update
Please copy following documents to the root of SD card.
(Please don’t edit the documents name.)
mks_picmks_configmkstft28
Then, plug the SD card to the TFT and power on. It will update automatically.
3.Config
4.Bed Leveling
Auto Leveling
After the machine assembles with a bed leveling controller, then run leveling on TFT interface.
#The command of auto leveling (G29 is available for Marlin.
While G32 is for Repetier and Smoothieware)
>cfg_auto_leveling_cmd:G28;G29;
Manual Leveling
Manual leveling is good for MB,i3 etc machines. It is available to set 3,4,5 point .
#The point number of manual leveling:(3,4,5 point available)
>cfg_point_number:4
5.Filament Replace
It is easy to replace the filament when it runs out.
You are able to set temperature and the speed of filament in-out on config.
As following:
#the speed of filament replacing(mm/min)
>cfg_filament_change_speed:1200
#the length of filament replacing(mm)
>cfg_filament_change_step:5
#the min temperature of filament replacing
>cfg_filament_limit_temperature:175
Then, here is the steps to replace filament.
1).On printingpause-----more-----change----in/out-----stop 2).Before start printingset-----change-----preheat-----in/out-----stop6.Print from Breakpoint
TFT has a one of the excellent features is able to print from Breakpoint.
Below is the way to do it.
Firstly, set target temperature of extruder and heated bed, and then preheat.
Secondly, when preheat ready, go home .(Notice: if power off happens during operating printing from breakpoint, please must home .)
Thirdly, move extruder to the breakpoint which is available to set allowable error.
#Breakpoints continued playing Z-axis error setting
>cfg_breakpoint_z_error:0.2
Fourth, click set, and then click Continue(Means Print from Breakpoint).
After that, choose the file you want.
(If you pause the printing, and turn the printer off,
then it will resume to print from the pause point after power on.)
7.Filament Outage Detecting
Connect detecting switch to PB1 of TFT.
Set configuration to trigger low level or high level available.
#the level signal of outage detection module PB1(low level:0; high level:1)
>cfg_PB0_PB1_Level:1
8. Auto off after Print Finishes
Enable this function on config,and take concerted with PWC switch.
#whether set machine auto-off after print finishes(auto-off:1; NO:0)
>cfg_print_finish_close_Machine:0
9. MKS WIFI
MKS TFT supports WIFI remote control. Please set configurations.
As follow:
#wifi mode(AP:1; STA:2)
>cfg_wifi_mode:1
#wifi name and password
>cfg_wifi_ap_name:MKS_wifi
>cfg_wifi_key_code:makerbase
#Dynamic access IP
>cfg_ip_dhcp_flag:1
#IP/mask/gateway
>cfg_ip_address:192.168.3.100
>cfg_ip_mask:255.255.255.0
>cfg_ip_gate:192.168.3.1
10.WiFi Wiring on TFT
11.User-Defined Function
